TTJ60 Turbo TwinJet Spray Tip

TTJ60 Turbo TwinJet® Spray Tip

• Dual 110° flat fan spray patterns with 60° angle between leading and trailing patterns for superior crop coverage and canopy penetration
• Greater number of droplets per pattern for excellent coverage in broadcast applications
• Polymer (VP) construction with VisiFlo® color-coding for easy size identification
• 60° angle between leading and trailing patterns increases canopy penetration and leaf coverage
• Automatic spray alignment with Quick TeeJet® cap and gasket
• PWM approved
• Ideal for herbicide, fungicide and insecticide applications where thorough coverage matters

Technical Specifications

• Spray pattern: Dual 110° flat fan, 60° between leading and trailing patterns
• Optimum spray height: 20" at 20" nozzle spacing
• Material: VP — VisiFlo polymer with color-coding

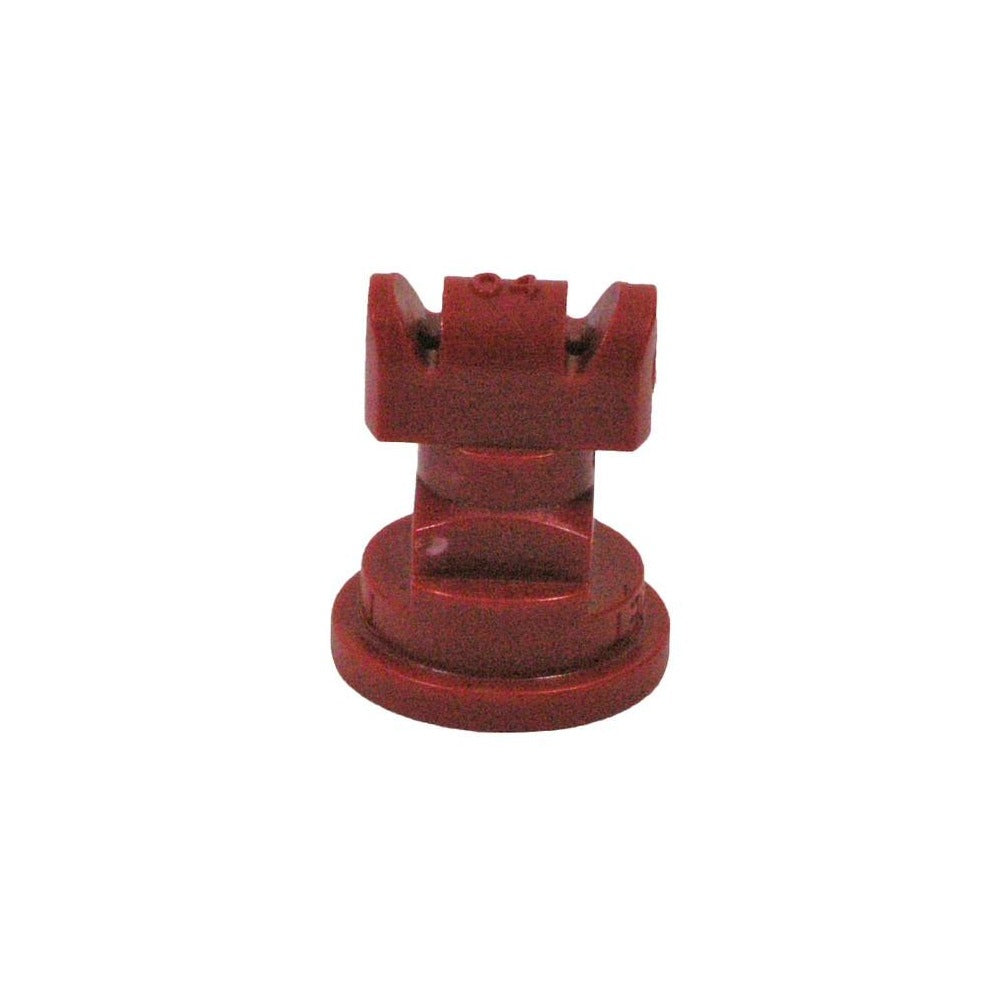

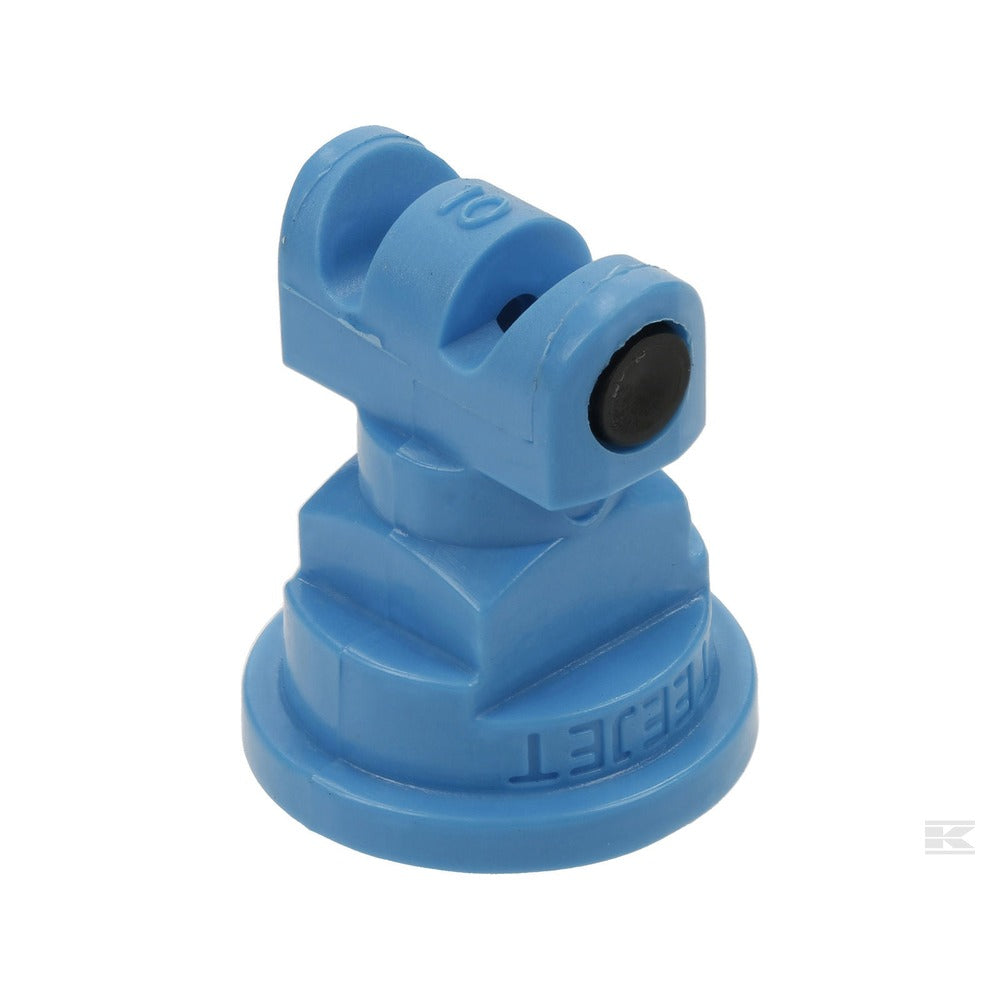

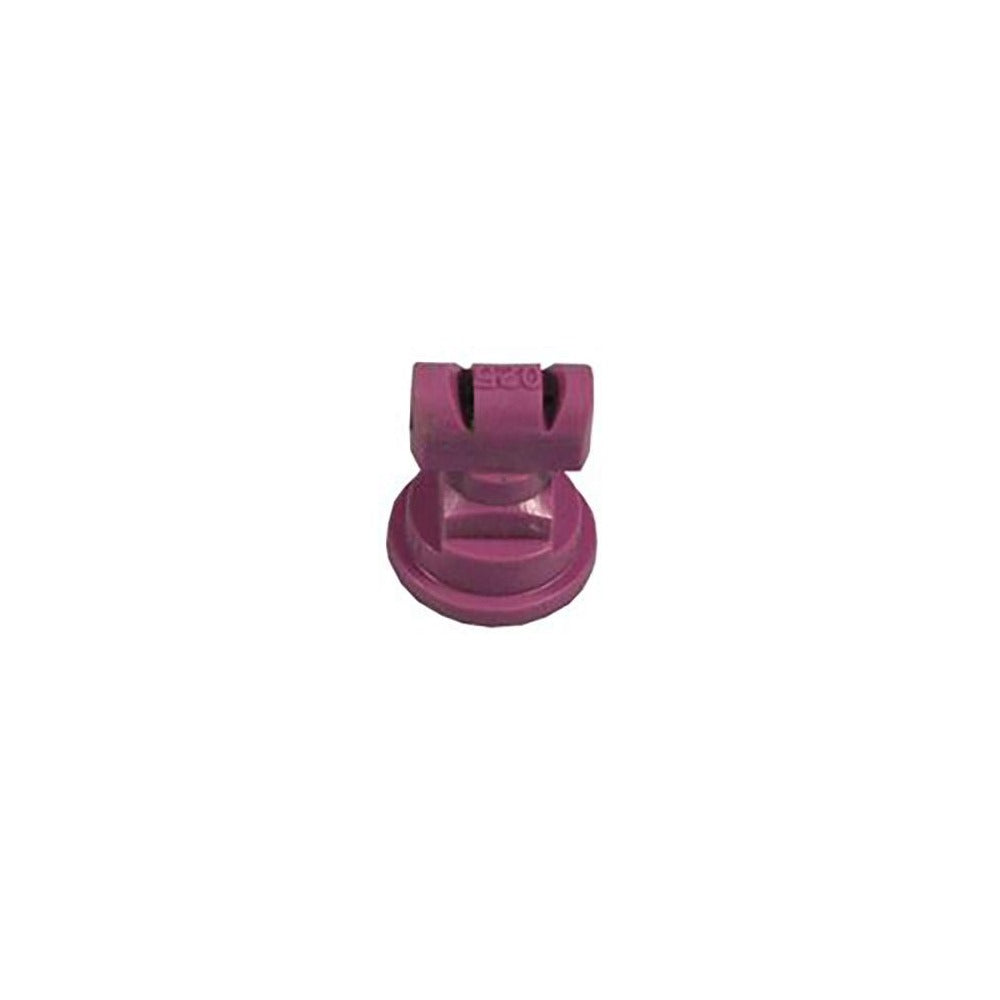

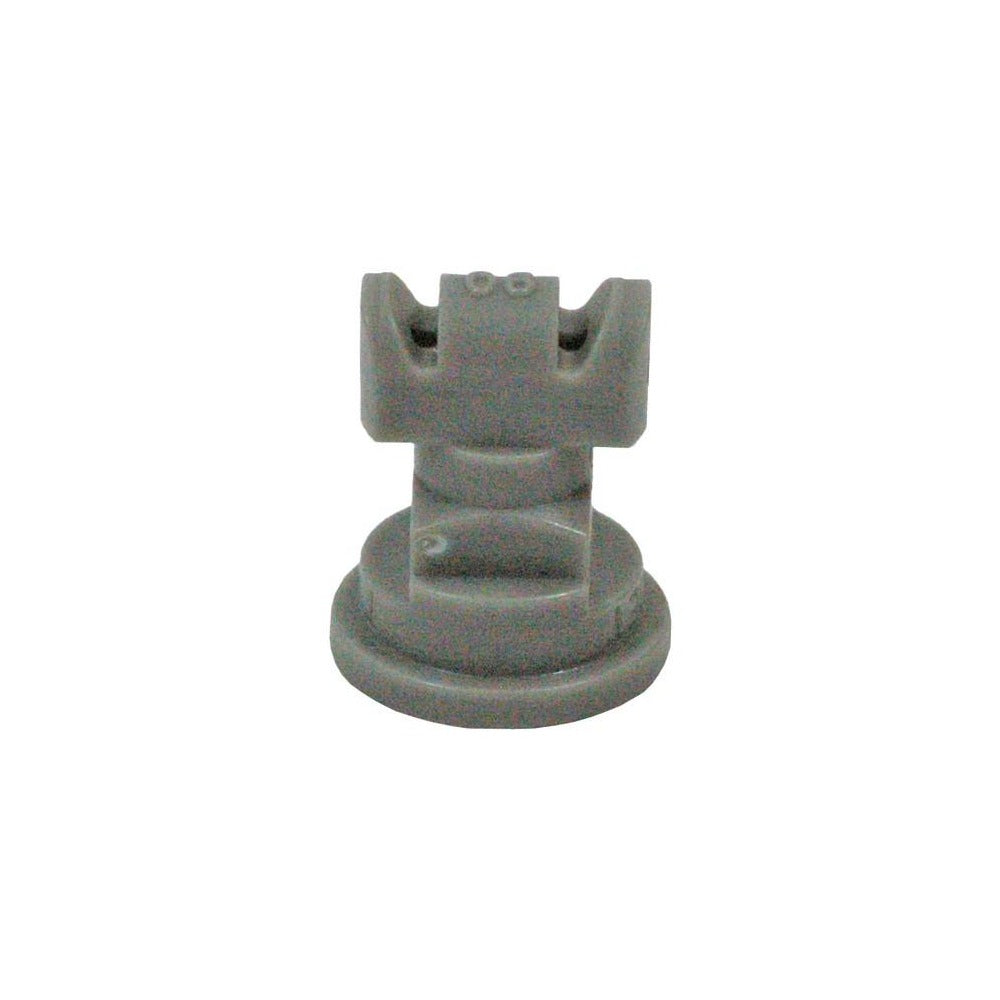

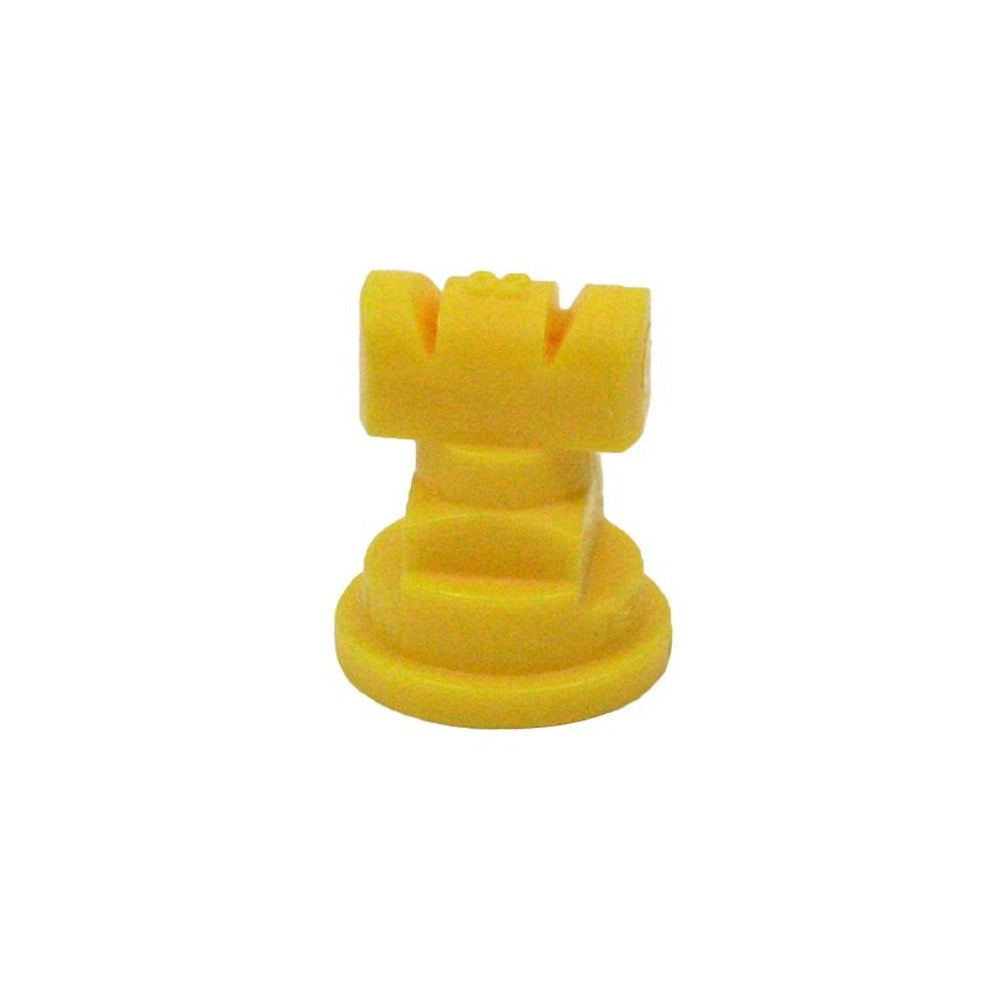

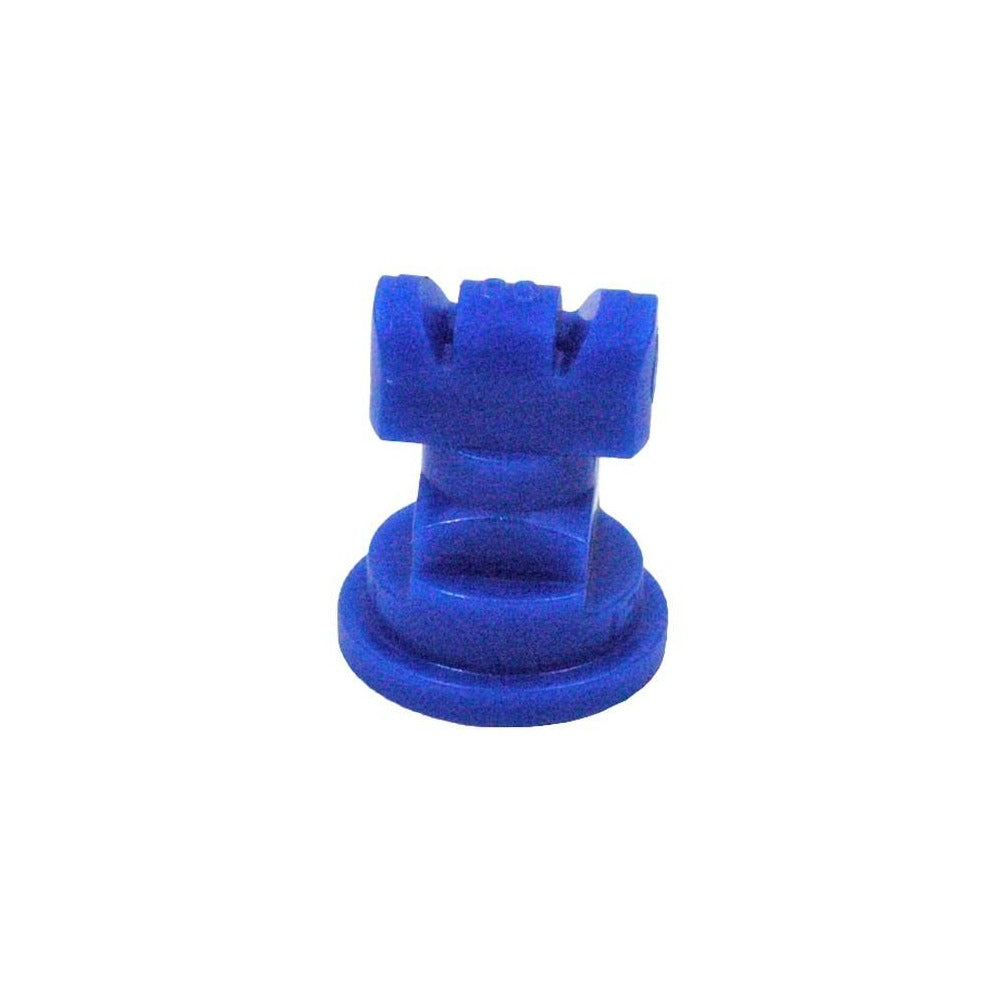

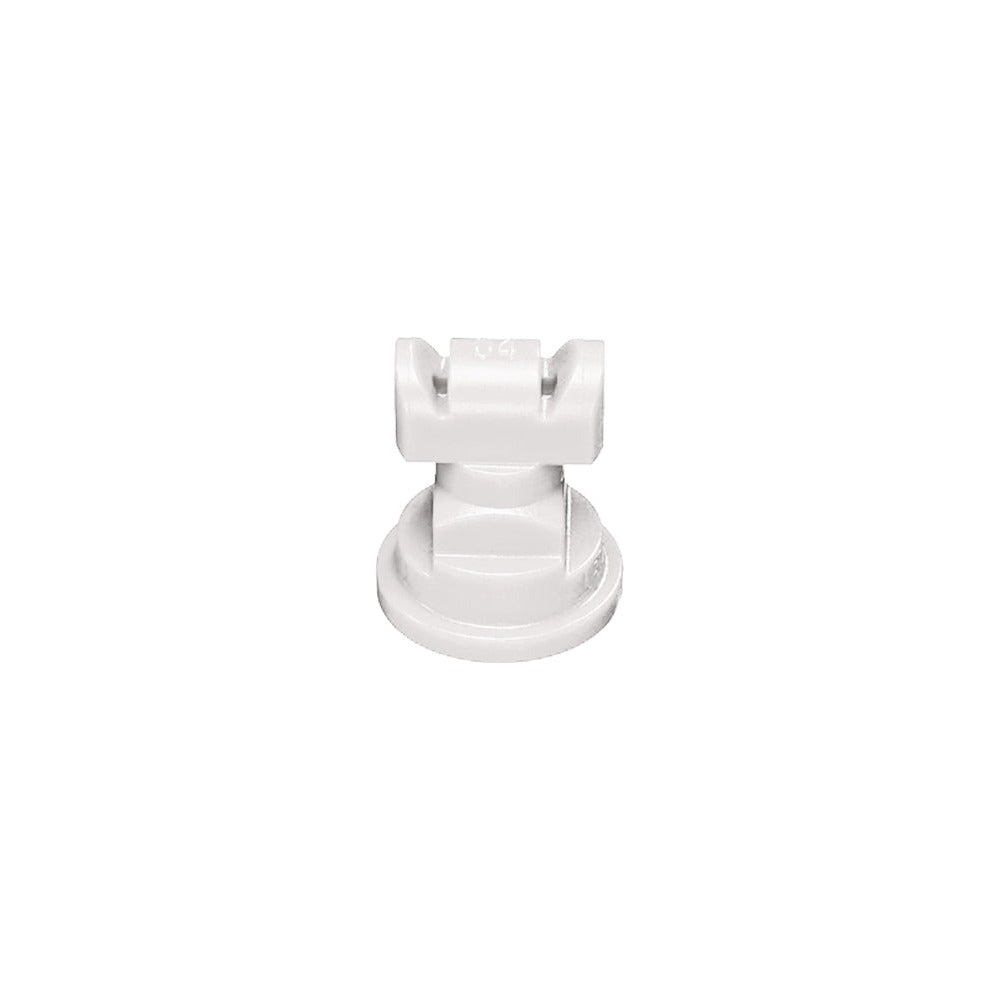

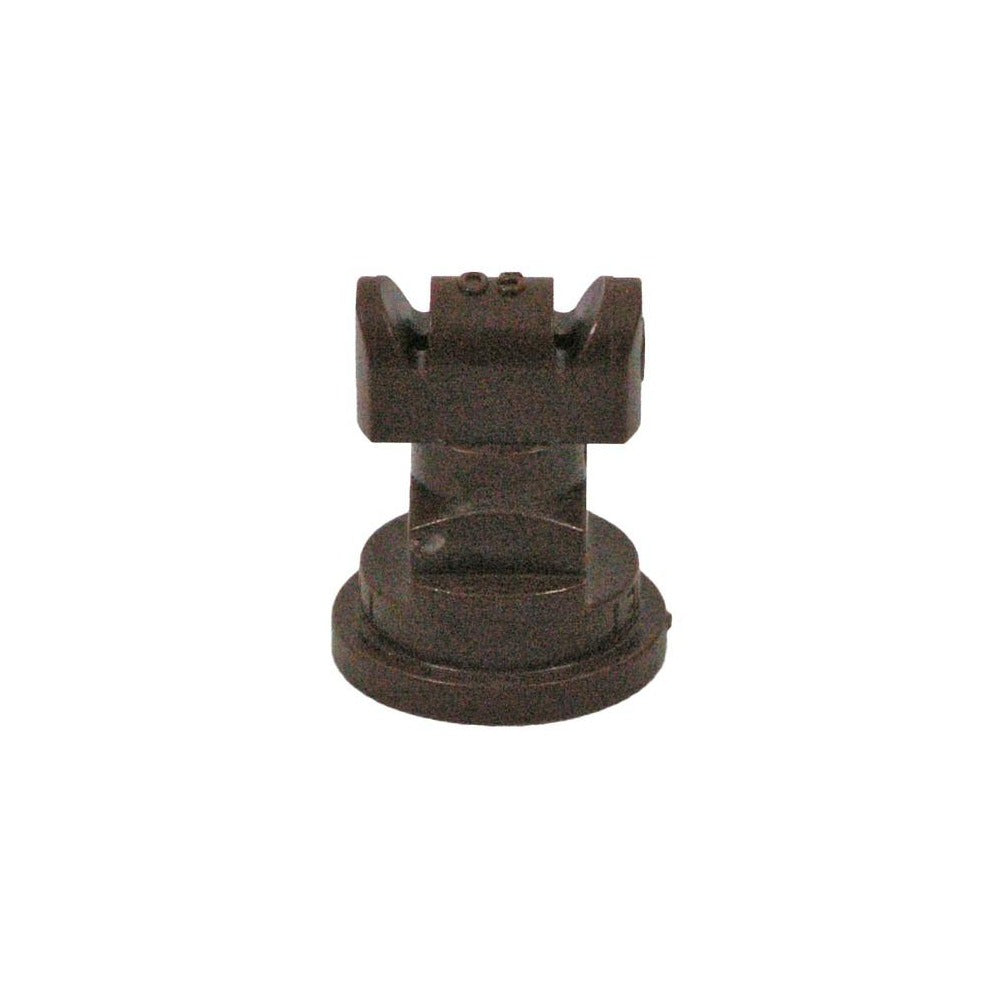

• Part numbers: TTJ60-11002-VP, TTJ60-110025-VP, TTJ60-11003-VP, TTJ60-11004-VP, TTJ60-11005-VP, TTJ60-11006-VP, TTJ60-11008-VP, TTJ60-11010-VP

Technical Information

• Dual outlet design produces two 110° flat fan spray patterns using patented Turbo TeeJet nozzle technology
• 60° angle between the leading and trailing spray patterns (forward and back)
• Best suited for broadcast spraying where superior leaf coverage and canopy penetration are important
• Recommended pressure range: 20–90 PSI
• Droplet size classification: Medium through Very Coarse (M / C / VC); droplet size range slightly larger than single-pattern tips
• Materials: VisiFlo polymer (VP); available in eight VP capacities
• Optimum spray height: 20" at 20" nozzle spacing
• Typical applications: herbicide, fungicide, insecticide, soil-applied — contact and systemic, broadcast
• Drift control: Very Good; PWM approved
• For replacement, use automatic-alignment Quick TeeJet cap and gasket 114441A-*-CELR

Tip Chart — Application Rates

View full-size tip chart
