Description

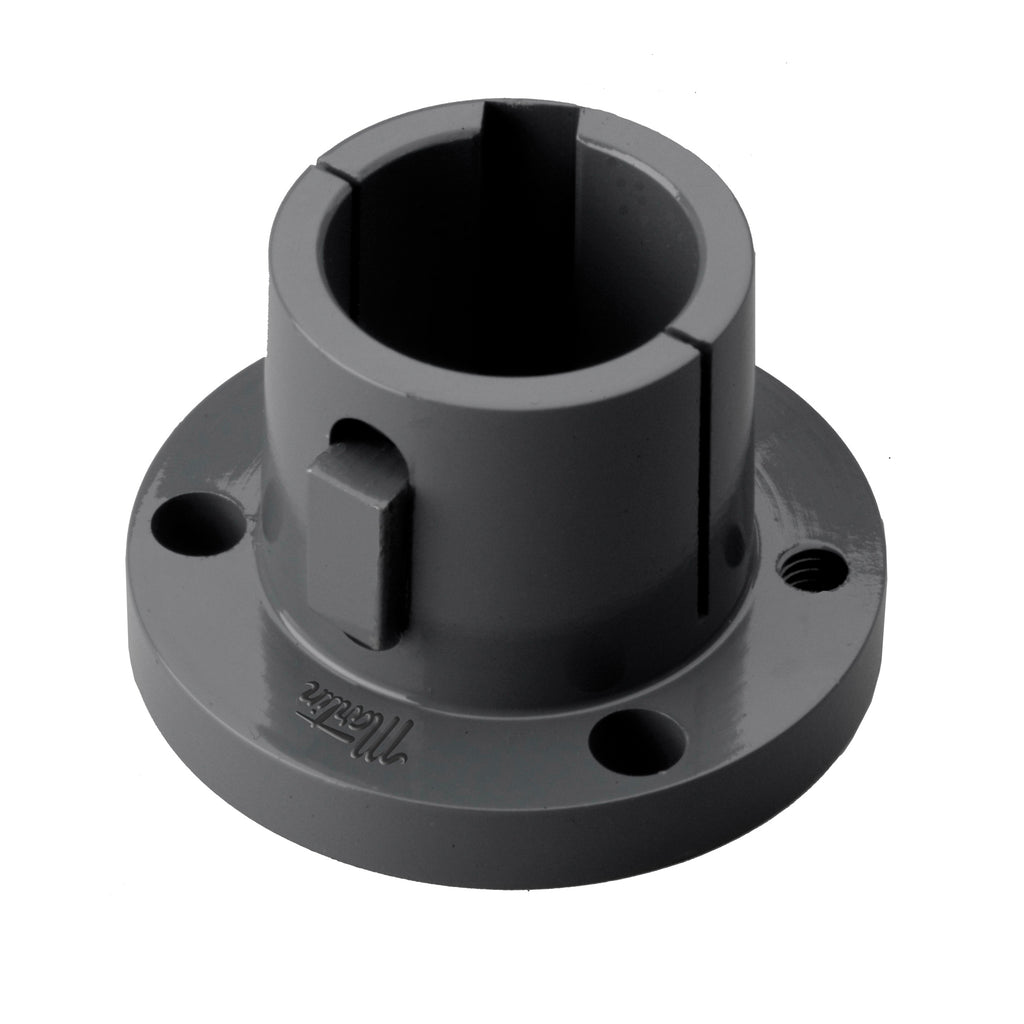

- Martin MST split-taper H-series shaft bushing, 1-3/8 in finished bore
- 3/8 in keyway (deep-keyway W variant for 3/8 in key stock on a 1-3/8 in shaft)
- Ductile iron construction for high strength and durability
- 2-1/2 in flange diameter, 1-1/4 in overall length, 2 in bolt circle
- Mounts with 2 cap screws, 1/4-20 x 3/4 in (95 in-lb wrench torque)
- Rated 2,500 in-lb torque capacity; split through the barrel for a true clamp fit on the shaft
- Keyed to both the shaft and the hub, which helps during blind installations
- For use with MST sprockets, sheaves, and HH1/HCH1 weld-on hubs
- Interchangeable with other manufacturers' split-taper H bushings
- UPC 697950149097; ships with cap screws, instruction sheet, and key
