Description

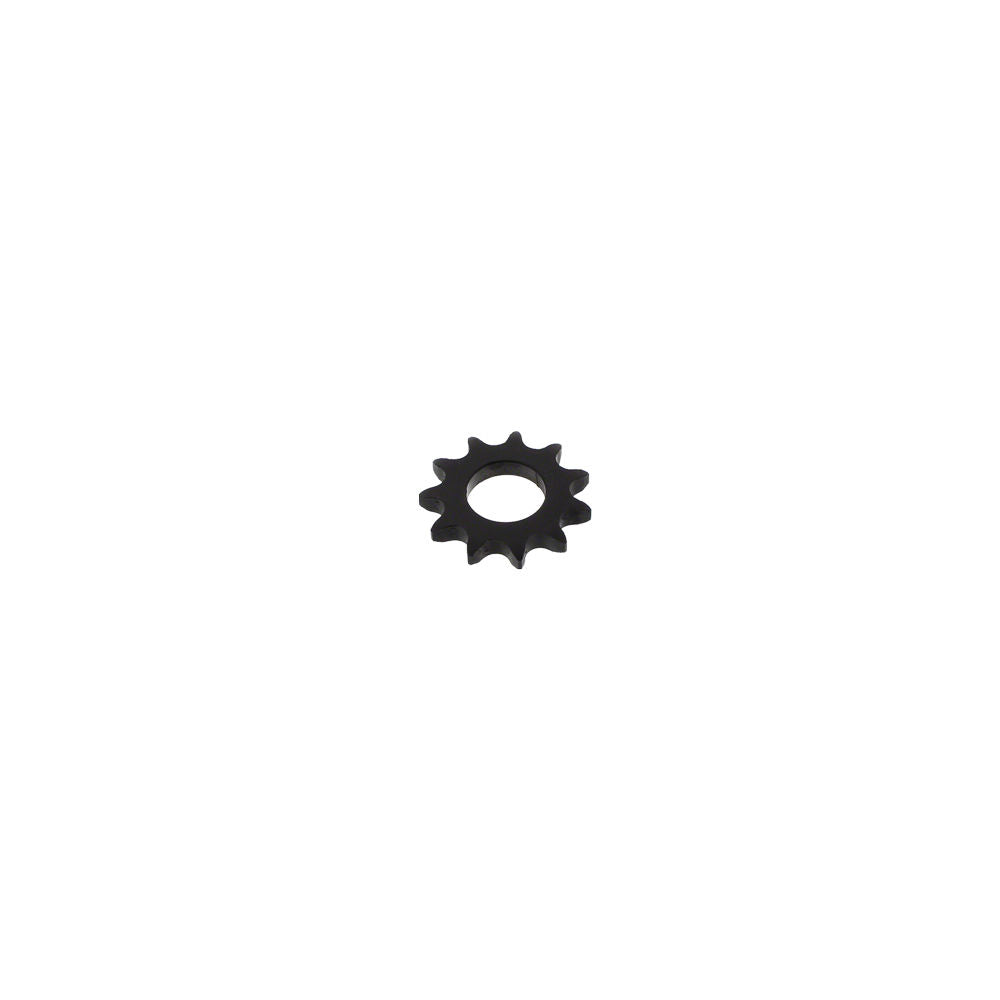

- TQP weld-on sprocket for #50 ANSI roller chain (5/8" pitch), 11 teeth
- Welds to any V-series weld-on hub (hub bore 1-1/8") — hub sold separately — pick a finished-bore hub to match your shaft
- Outside diameter 2.50"; sprocket plate bore 1-1/8" (fits V-series hub)
- Pitch diameter 2.218" for #50 chain (0.625" pitch, 0.400" roller dia, 0.375" roller width)
- Heat-treated carbon steel teeth, black-oxide finish; made to ANSI standards
