Description
Features & Benefits
- Circuit identification on the back of the socket
- Terminals accept 16-10 gauge wires; 8 gauge ground wire
- Solid brass pin terminals for best conductivity
- Housing provides superior corrosion resistance
- Plated-steel cable guards prevent cable chafing
- Terminals accept from #16 wire to #8 ground wire
- Circuit identification on the back of the plug & socket
Technical Specifications
- Material: Zinc Die-Cast
- Amperage: 40 A @ 6–28 VDC
- Standards: SAE J560
- Pack Quantity: 1
- Mtg Hole: 2, 1/2"
- Conductor: 7

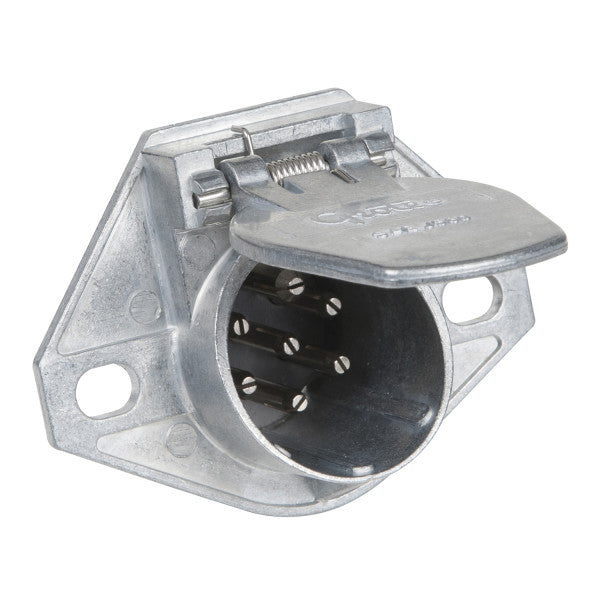

- Product Type: Socket
- Terminals: Enclosed, Split Pin
- Warranty: 1 Year
