AI3070 Air Induction Spray Tip

• Dual wide-angle flat spray patterns for uniform coverage in broadcast applications
• 30° forward-tilted spray penetrates dense crop canopies; 70° backward-tilted spray maximizes seed head coverage — ideal for fungicide spraying on cereal crops
• Venturi air aspirator produces drift-resistant droplets
• Removable pre-orifice for fast, easy cleaning
• VisiFlo polymer (VP) color-coded body — chemical resistant and easy to identify
• Automatic spray alignment with Quick TeeJet cap and gasket 114502A-1-CELR or 98579-1-NYR
• Reduced boom height: 12" at 20" spacing (vs. standard 20")
• Pressure range: 20–90 PSI

Typical applications: Fungicide (contact excellent / systemic very good); drift control very good. Droplet size M (Medium) through UC (Ultra Coarse) per ISO 25358 depending on pressure.

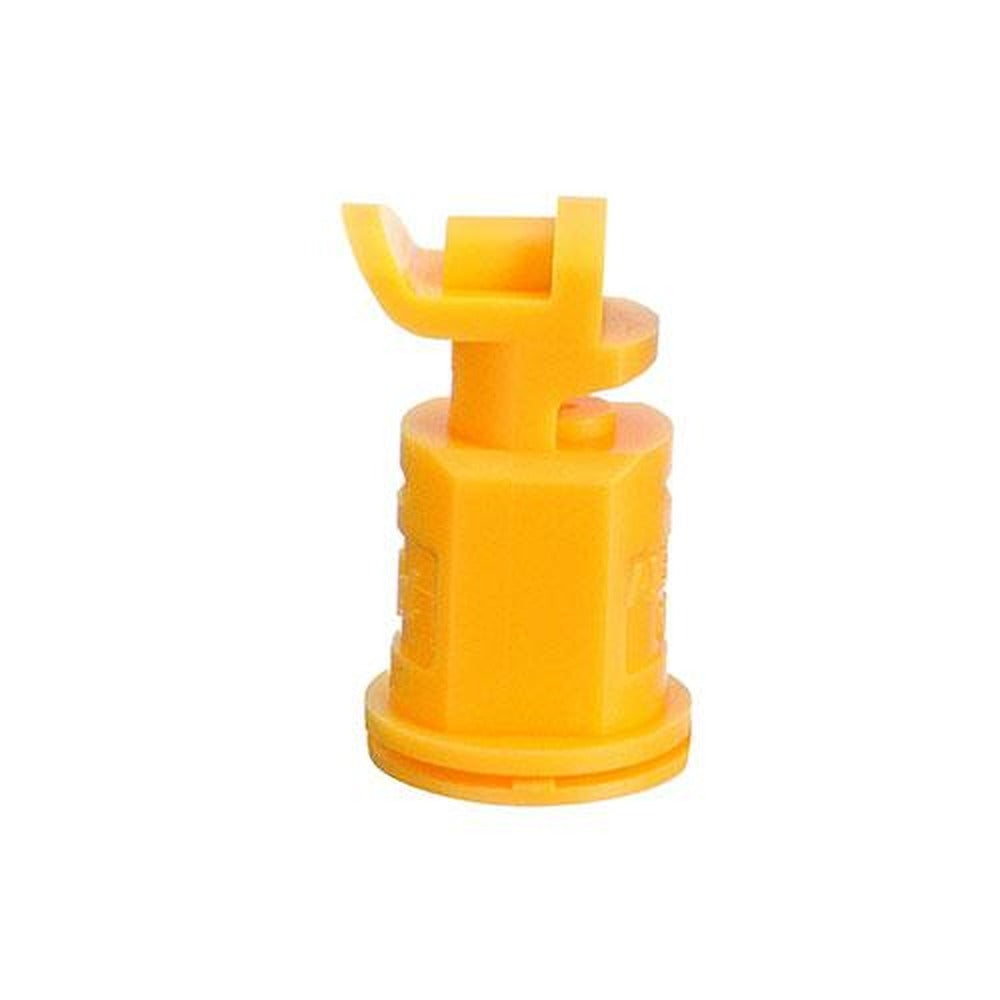

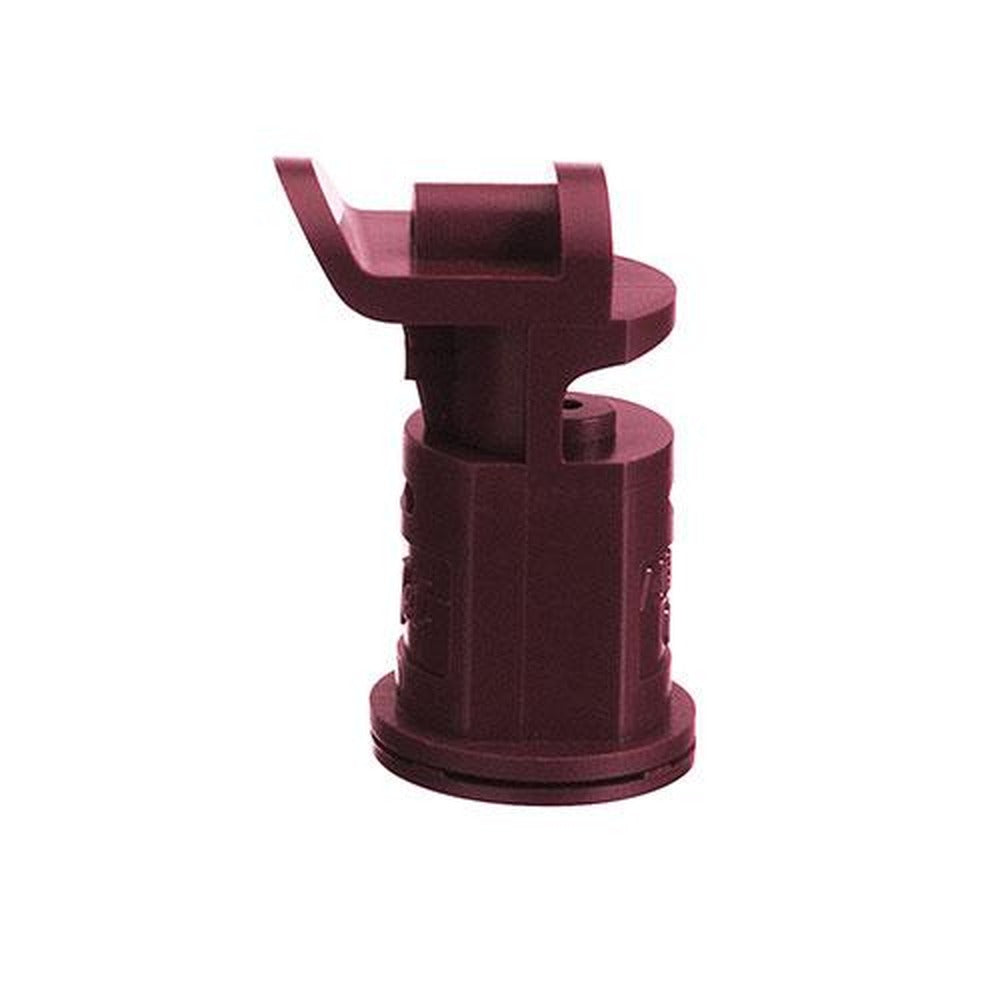

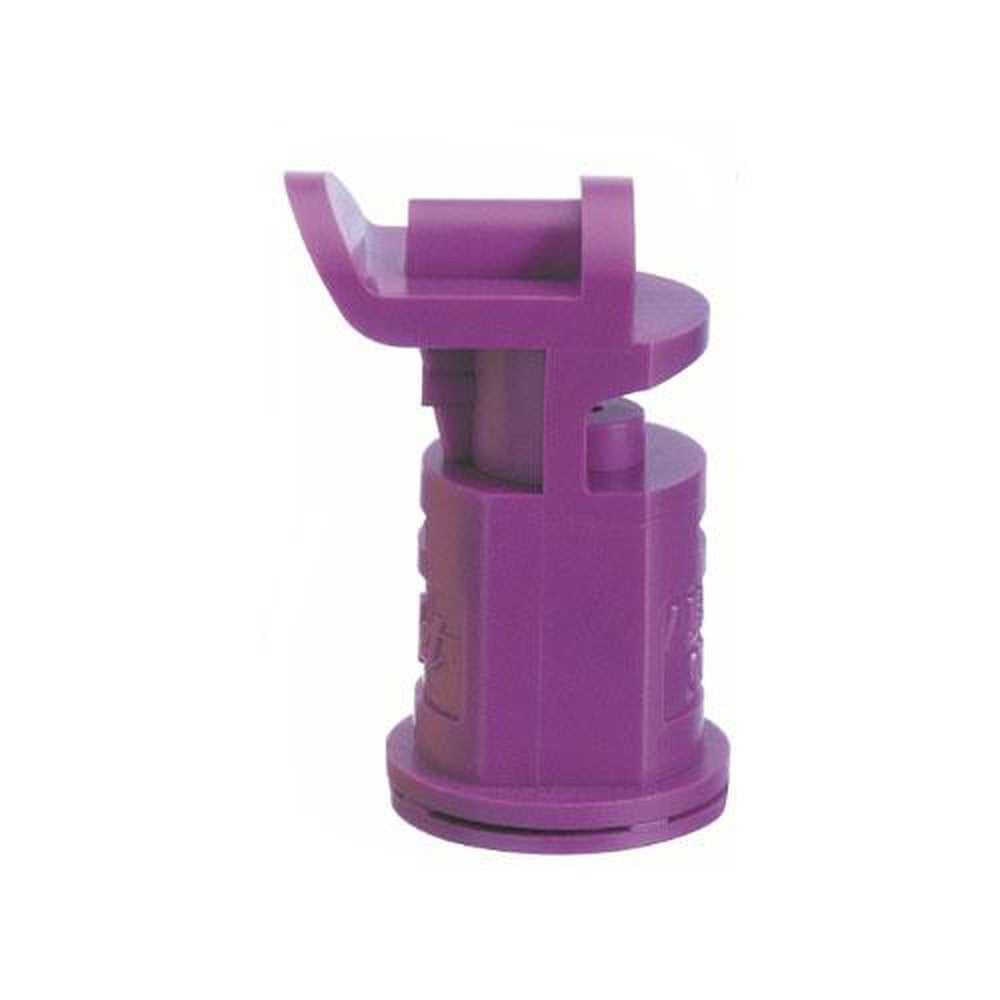

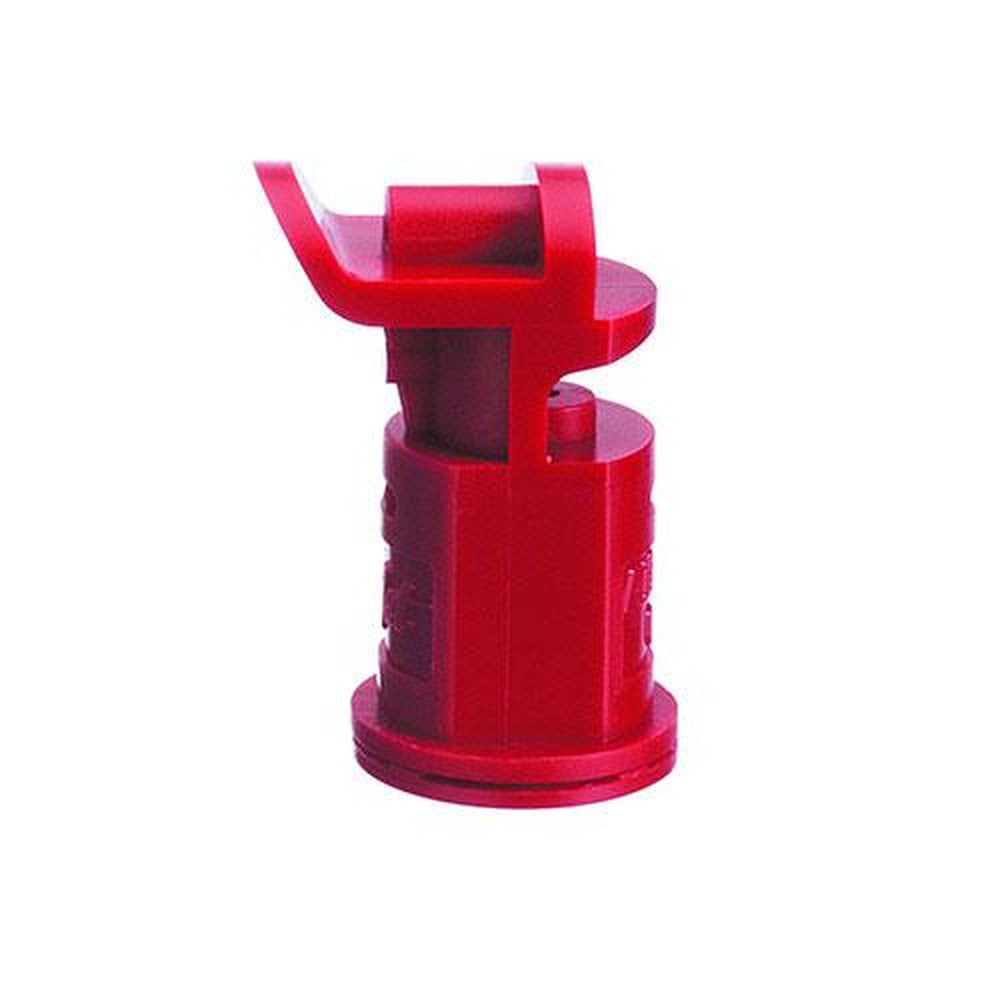

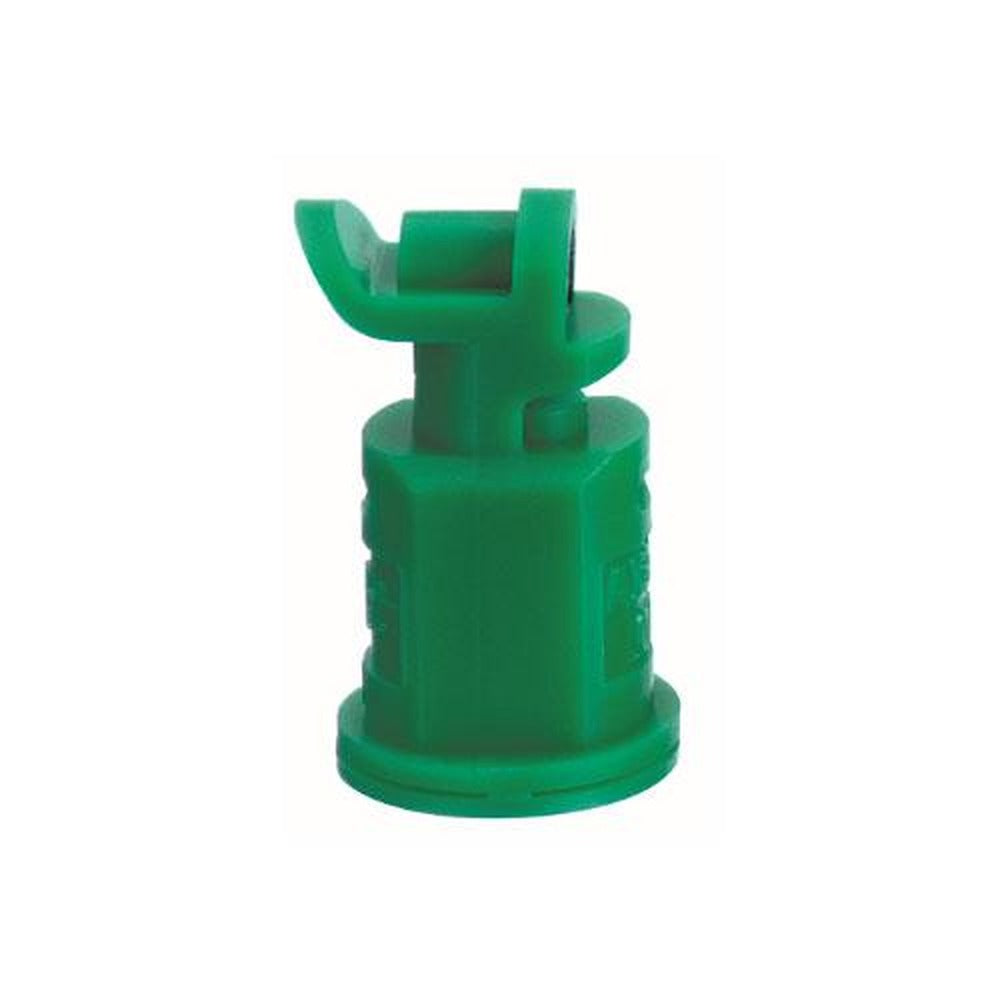

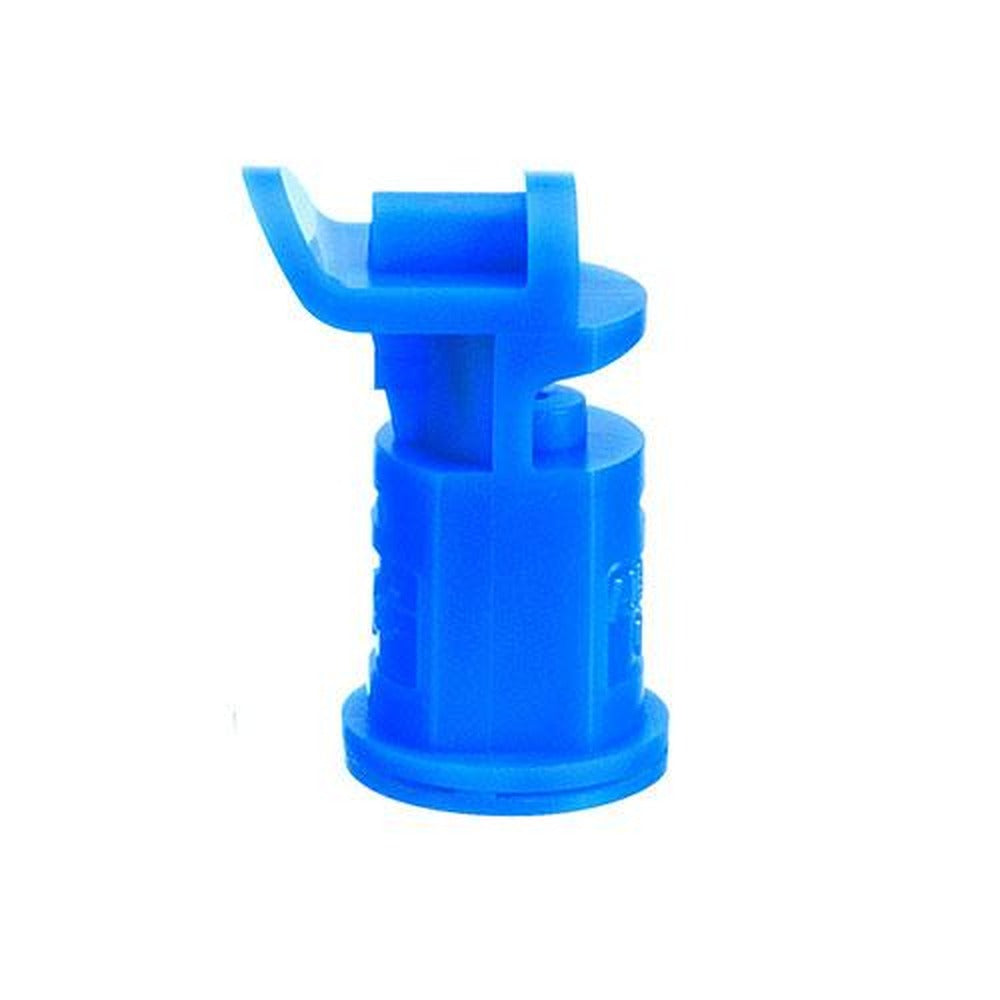

Part numbers: AI3070-015VP, AI3070-02VP, AI3070-025VP, AI3070-03VP, AI3070-04VP, AI3070-05VP

Technical Information

• Air induction dual-pattern flat spray tip
• 30° forward-tilted spray penetrates dense crop canopies, while the 70° backward-tilted spray maximizes coverage of the crop seed head
• Produces two wide angle, flat spray patterns for uniform broadcast coverage
• Drift-resistant droplets produced through a Venturi air aspirator
• Recommended pressure range: 20–90 PSI
• Droplet size classification: Medium through Ultra Coarse (M / C / VC / XC / UC)
• Materials: VisiFlo polymer (VP); available in six VP capacities
• Optimum spray height: 12″ at 20″ nozzle spacing — boom height must be REDUCED compared to other flat spray tips due to the spray tip design
• Provides excellent penetration and seed head coverage for fungicide spraying on cereal crops
• Automatic spray alignment with Quick TeeJet cap and gasket 114502A-1-CELR or 98579-1-NYR
• Typical applications: fungicide — contact and systemic, broadcast
• Drift control: Very Good
