Description
Description

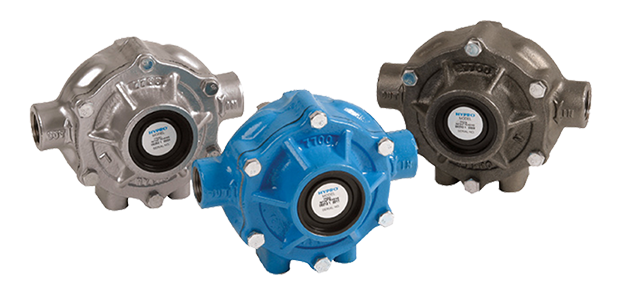

The 7700 series, 7 roller, pump achieves up to 22.1 gpm (83.7lpm) and 200 psi (13.8 bar). The series includes models 7700C, 7700N, and 7700XL.
Features
- Shaft rotation: Counter clockwise when looking at the shaft end(Clockwise available)
- Rollers: Super Rollers standard [Poly (T3) and Teflon® (T2)]
- Recommended PTO torque arm kit 3430-0540
- Rotor: Cast Iron, Ni-Resist or Silvercast
Specifications
- Pump Type: Roller Pump
- Housing Material: Cast Iron
- Ports: 3/4" NPT
- Seal Material: Viton® standard
- Max Fluid Temperature: 140°F/60°C
- Weight: 14 lbs./6.4 kg
- Max GPM: 22.1
- Max LPM: 83.7
- Max PSI: 200
- Max BAR: 13.8
- Max RPM: 800
- Shaft Output (US): 15/16"
- Shaft Output (Metric): 23.8 mm
- Shaft: Solid
What's in the Box
- 7700C roller pump in the box; PTO adapter, torque arm kit 3430-0540 and fittings sold separately.
