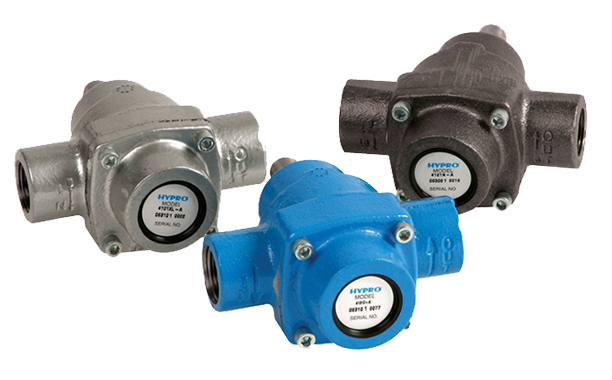

4101C, PUMP ASSEMBLY

Description

The 4101 series, 4 roller, pump achieves up to 7.2 gpm (27.3 lpm) and 150 psi (10.3 bar). The series includes models 4101C, 4101N, and 4101XL.

Features

• Pump shaft rotation: Clockwise when looking at the shaft end (counter clockwise available)
• Rollers: Super Rollers standard [Poly (T3) and Teflon® (T2)]
• Special torque arm and base kit is available for gas engines
• Rotor: Cast Iron, Ni-Resist or Silvercast

Specifications

• Pump Type: Roller Pump
• Housing Material: Cast Iron
• Ports: 3/4" NPT
• Seal Material: Viton® standard
• Weight: 5 lbs./2.27 kg
• Max Fluid Temperature: 140°F/60°C
• Max GPM: 7.2
• Max LPM: 27.3
• Max PSI: 150
• Max BAR: 10.3
• Max RPM: 2600
• Shaft Output (US): 5/8"
• Shaft Output (Metric): 15.9 mm
• Shaft: Solid

What's in the Box

• 4101C roller pump in the box; PTO adapter, torque arm kit and fittings sold separately.
