Description

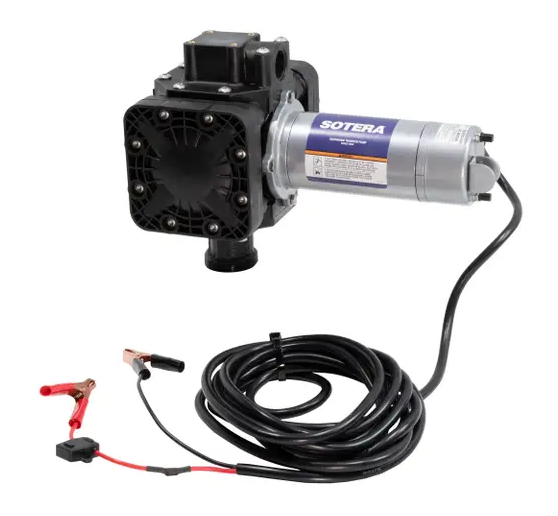

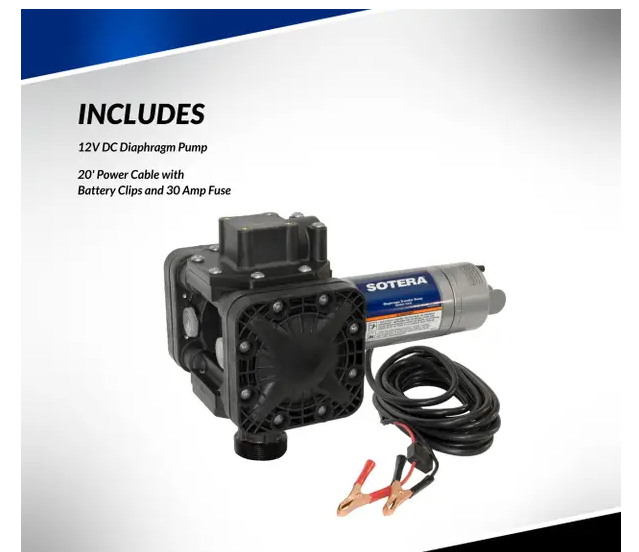

PUMP, 12V DC WATER-BASED CHEMICAL PUMP SERIES (SS415B)
The SS415B model is a 12V DC chemical transfer system. This Sotera bundle includes a metal bung mount and additional chemical fittings.
- Consistent & Reliable Performance — engineered with double diaphragms, the Sotera 400 series delivers reliable performance by maintaining constant output pressure regardless of load
- Fluid Flexibility — santoprene diaphragms are compatible with a wide range of fluids including but not limited to agricultural pesticides, herbicides, fertilizers, mild acids, soaps, and water
- Durable Design — pump can run dry without causing any internal damage, giving you peace of mind with your investment
- Long Life – thermally-protected motor prevents overheating, ensuring your pump withstands the test of time
- Convenient Configurations — conveniently available in six core configurations for your application including the portable Chemtraveller, recirculating Mix-N-Go, mobile Pump-N-Go, sturdy IBC tote bracket, steel drum mount, and plastic straight flange
Performance
Max Flowrate: 13
Power Type: 12V DC
Inlet Size / Connection / Thread: 1 " / Female / NPT
Outlet Size / Connection / Thread: 1 " / Female / NPT
Mounting Type: Bung Mount
Duty Cycle (min): 30 min on / 30 min off
Motor Power (HP): 0.25
Suction Lift (ft.): 9 '
Max Operating Pressure (PSI): 15
Discharge Head (ft.): 38 '
Max Current (A): 20 A
Cable Length (ft.): 20
Cable Gauge (GA): 12
Cable Connection: Alligator Clips
