Gpi - 137100-01 8 GPM 12V Fuel Transfer Pump (Gpi® EZ-8 Series)

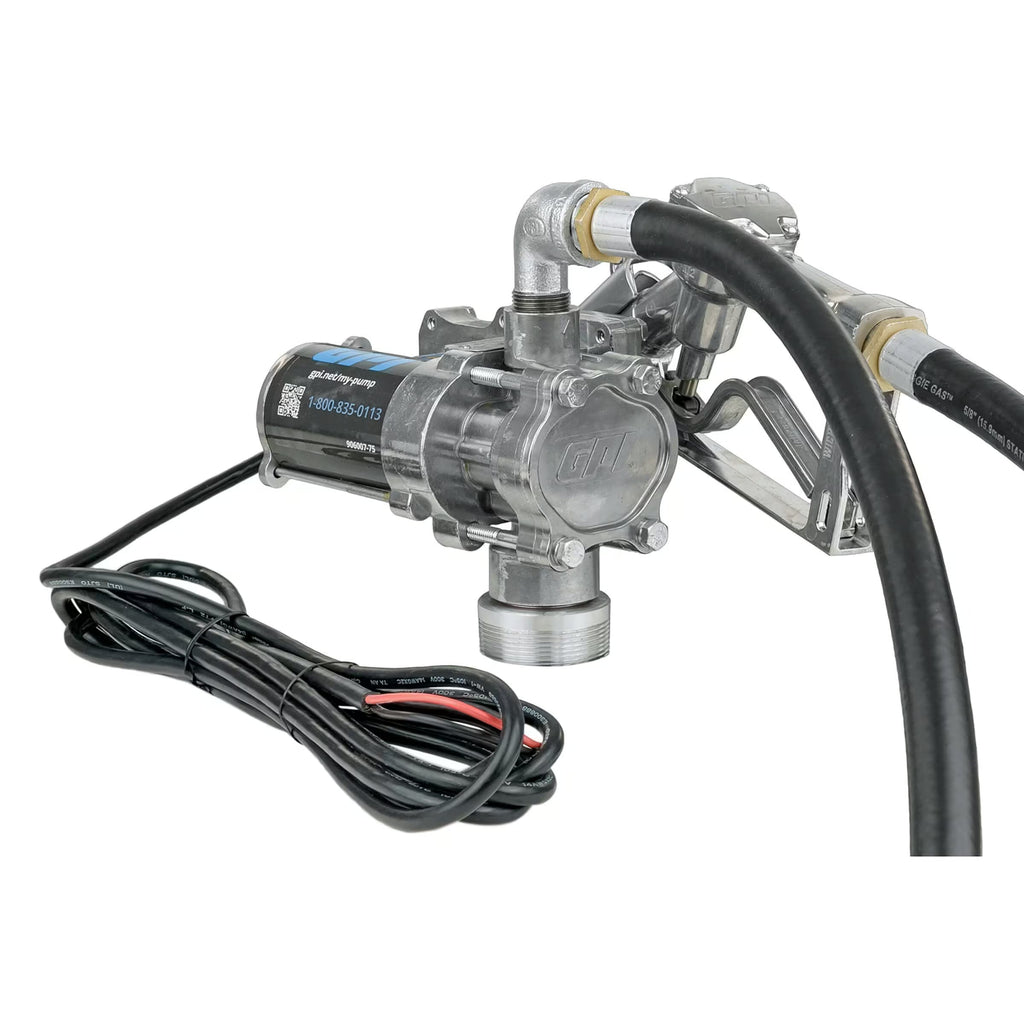

GPI EZ-8 8 GPM 12V DC fuel transfer pump with manual unleaded nozzle.

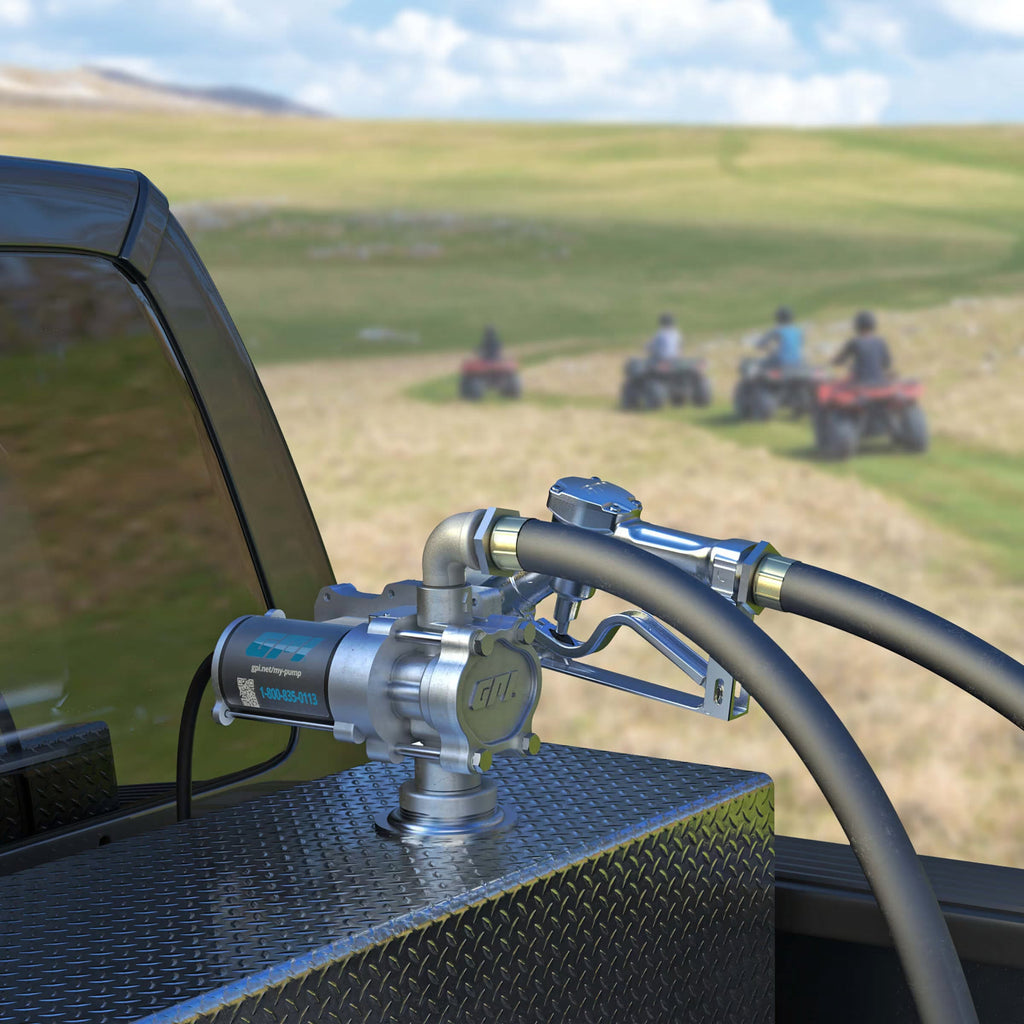

The EZ-8's 12V DC motor delivers gas station equivalent flow rates of up to 8 GPM for gasoline, diesel fuel, ethanol blends, and kerosene. This is the direct mount model - fits all standard 2 in. NPT tank fittings. It is the perfect pump for on-the-go fueling for agriculture and automotive applications. Mount this dependable pump to fuel drums or tanks up to 100 gallons, and you are ready to go off-roading, cruise the lake, or achieve “yard of the week” mowing status.

Combo includes 3/4" NPT Black Diamond no-fail manual nozzle is the most durable, best performance nozzle on the market! Designed to last a lifetime.

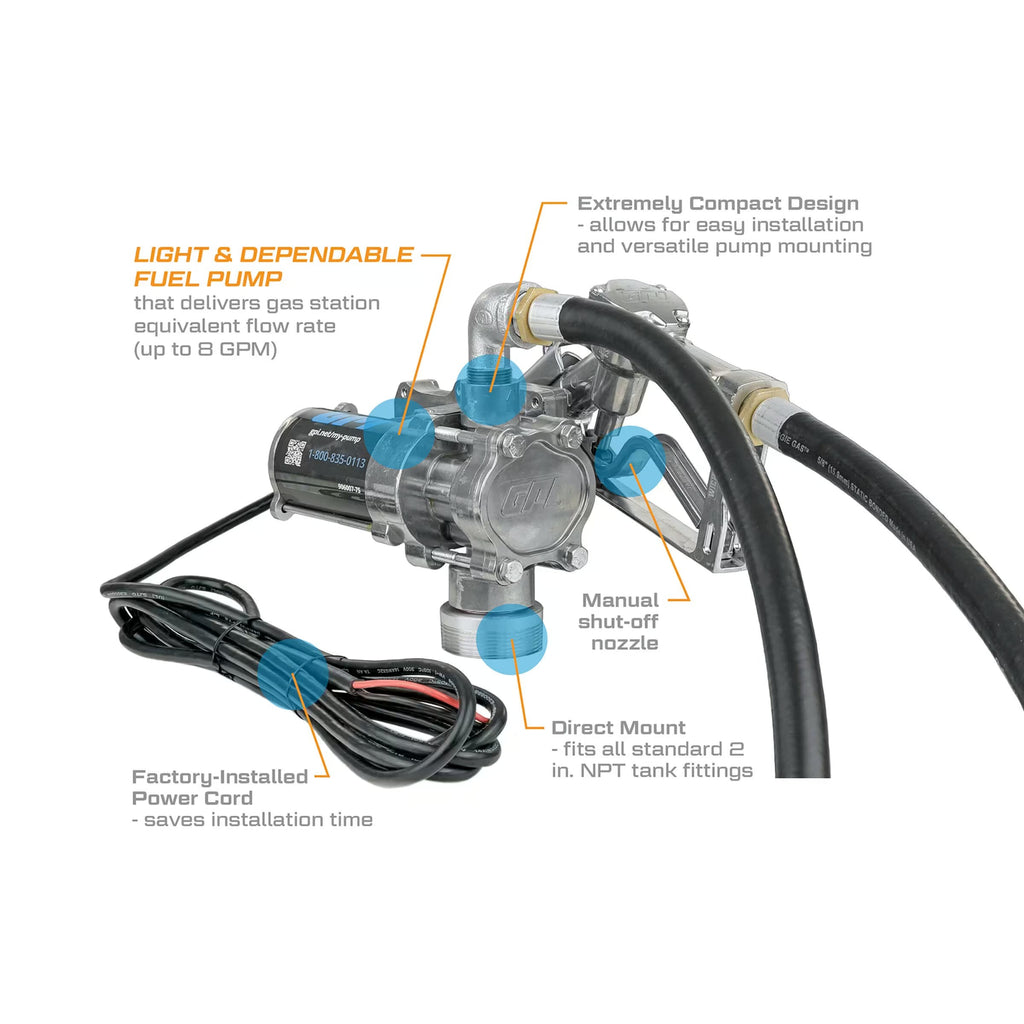

Features & Benefits

• Gas station equivalent flowrate (up to 8 GPM). Self-priming low maintenance design
• Extremely lightweight design, less stress on small tanks and barrels
• Easy installation and direct tank mounting
• Powder coated motor can and aluminum body provides corrosion resistance.
• Thermal overload protection extends pump life
• Motor U.L. listed to U.S. and Canadian standards

Specifications

• Flow Rate: 8 GPM (30 L/min)
• Voltage: 12V (DC)
• Horsepower: 0.10
• Current Draw: 15 amps
• Duty Cycle: 15 min on / 30 min off
• Pump Technology: Rotary Gear
• Inlet: 1 in. FNPT  |  Outlet: 3/4 in. FNPT
• Mounting: Direct Mount, 2in. MNPT
• Dispensing Hose: 10 ft. (3.05m) x 3/4 in. MNPT
• Power Cord: 15 ft. (4.6m), 14/2 AWG, Factory Installed
• Suction Pipe: Polypropylene, Telescoping 15 to 40in. x 1in. MNPT
• Nozzle Holder: Non-lockable
• Operating Pressure: UP TO 15 PSI (1.03 Bar)
• Discharge Lift: Up to 10 ft. (3 m) at Sea Level 70°F (21.1° C)
• Operating Temperature: -20°F to 125°F (-29°C to 52°C)
• Wetted Materials: Acetal | Aluminum | FKM | NBR | PPS | Stainless Steel
• Fluid Statement: Diesel Fuel up to B20 | Gasoline up to E15 | Kerosene
• Warranty: 2-Year Warranty

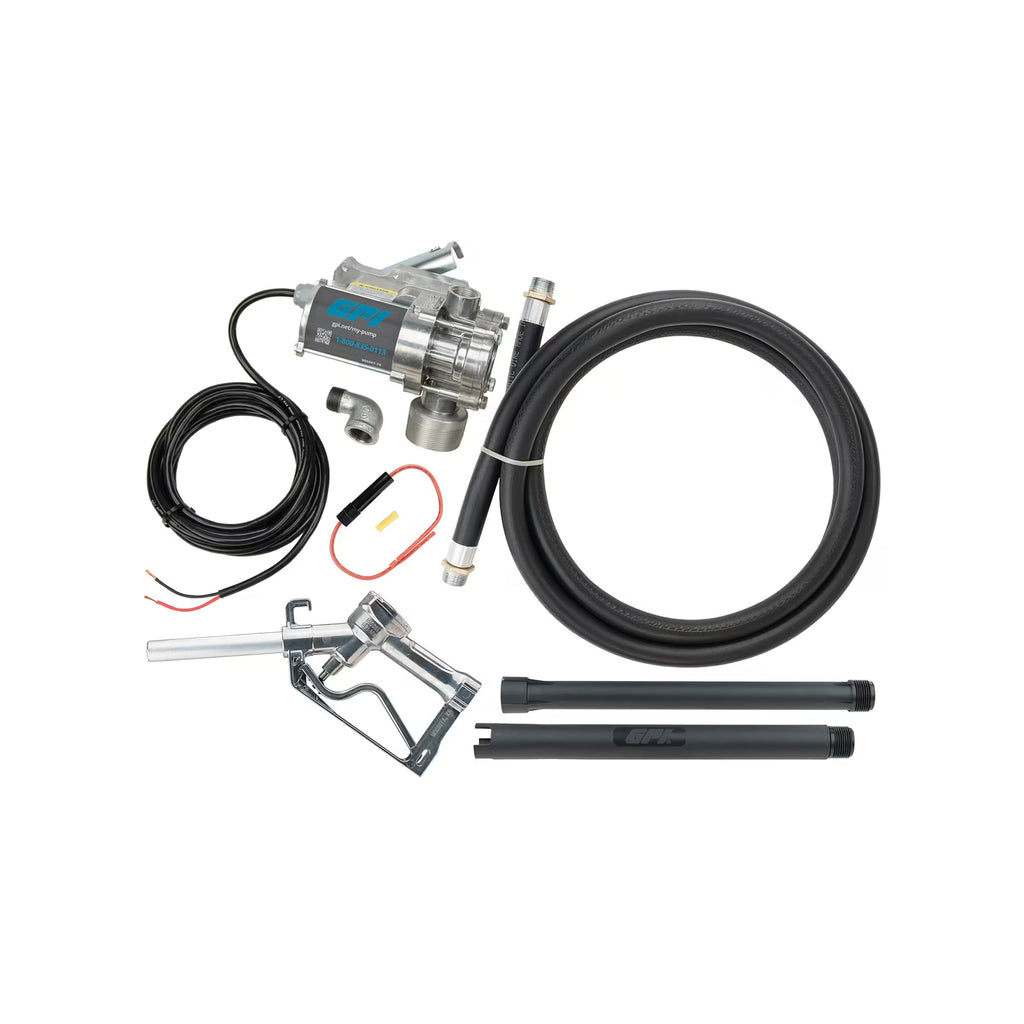

What's in the Box

• EZ-8 8 GPM pump
• Manual unleaded nozzle
• Dispensing hose w/static wire
• Factory-installed power cord
• Telescoping suction pipe
• Street elbow
• Tank adapter
• Fuse assembly
• Owners manual
