Description

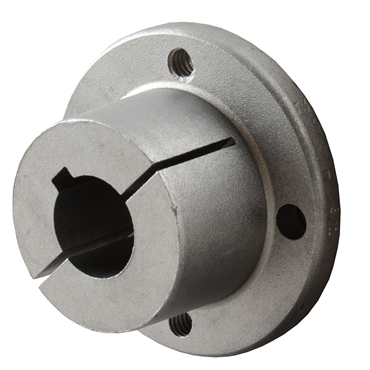

- H-series split taper bushing with 1-1/4 in finished bore and keyway
- Mounts sheaves, sprockets and couplings with a true concentric clamp fit on the shaft
- Double split barrel design grips the shaft with positive clamping force
- Keyed to both the shaft and the hub — external key provides positive drive with no torque on the cap screws
- Easy to install and remove without disturbing surrounding components
- 2-1/2 in flange OD, 1-1/4 in length through bore, 2 in bolt circle
- Includes 2 x 1/4-20 x 3/4 in cap screws — tighten to 95 in-lb
- 2,500 in-lb torque capacity
- Interchangeable with Martin MST H and Browning H split taper bushings
