Description
Macnaught MX Overview
Macnaught MX Oval Gear Flow Meters are Industrial Grade Positive Displacement Flow Meter devices. Our MX Meters provide true volumetric measurement of liquid thru the meter – not of scale, but actual flow measurement.
MX Meter bodies are machined of solid billet, our Rotor shafts are hardened alloy and our Rotor design is unmatched for accuracy and reliability. Our MX PD Meters are for clean fluids, only – no gases or solids-laden liquids.
ALL MX METERS PROVIDE A STANDARD .5% ACCURACY with .03% Repeatability of Flow
- ¼” thru 4” in sizing with .13 GPH to 320+ GPM in Flow Ranges
- Designed for Precise Volumetric Clean Process Fluid Measurement
- No Flow Conditioning – put the meter where you need it
Fluid Categories Well Suited for MX Oval Gear Flow Meters
Fuels • Oils • Solvents • DEF/ADBLUE • Greases • Lubricants • Fuel Additives • Glycols Polyols • Isocyanates • Asphalt Emulsions • Sealers • Epoxies • Adhesives • DI Water General Water • Acids • Bases • Inks • Chemical Additives • All Clean Process Fluids
How the Macnaught MX flow meter works:
The measuring element of an oval gear meter consists of two high-precision splined oval-shaped gears (Rotors). The gears are driven by the flow of the media and “mesh” together. In the presence of flow, exact known defined volumes of fluid are swept through the meter per each rotor rotation. As flow increases, so does the rotational speed of the Rotors. The number of revolutions is a precise highly accurate measure of the fluid that has passed through the meter. Regardless of viscosity, pressure, or temperature. Each “active” Rotor rotation creates a pulse and is detected by a sensor. Each meter is individually calibrated per ISO 17025 standards to .5% accuracy.
The new MX flow meter system makes measuring chemical simple and convenient. Minimum flow rate required is 4 usg/min and maximum flow rate is 200 usg/min.

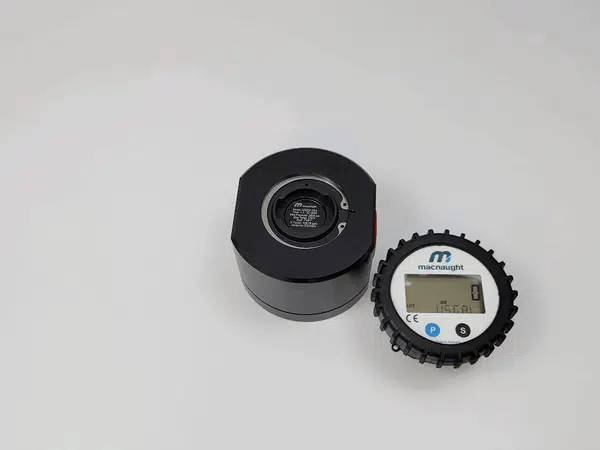

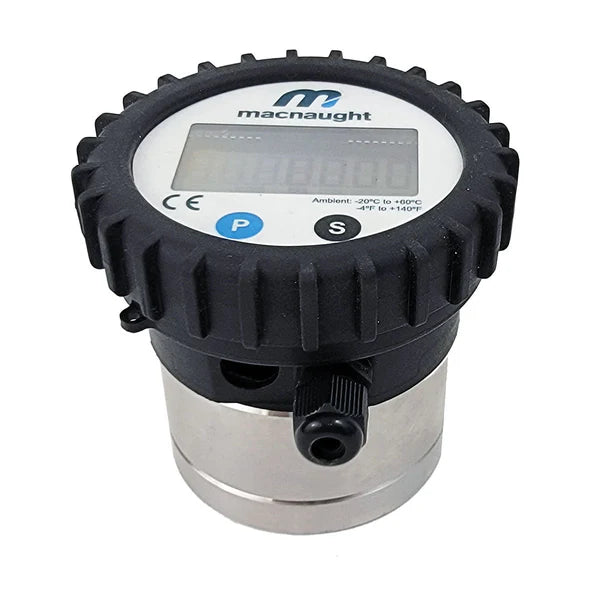

- Simple user interface
- Shows total volume in US gallons and liters
- Records three separate total volumes
- Replaceable long-life batteries
- threaded 2″ NPT inlet/outlet
- Mounts in-line to monitor flow rate with maximum precision
- 200 gallons per minute maximum
- 4 gallon per minute minimum
- Weather resistant enclosure

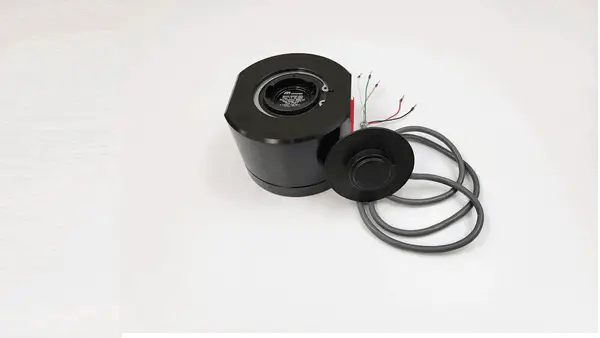

- Remote meter head kit available
