MUF21-1470000 - Model 390-7 Turbo III Pre-Cleaner 7"

MUF21-1470000

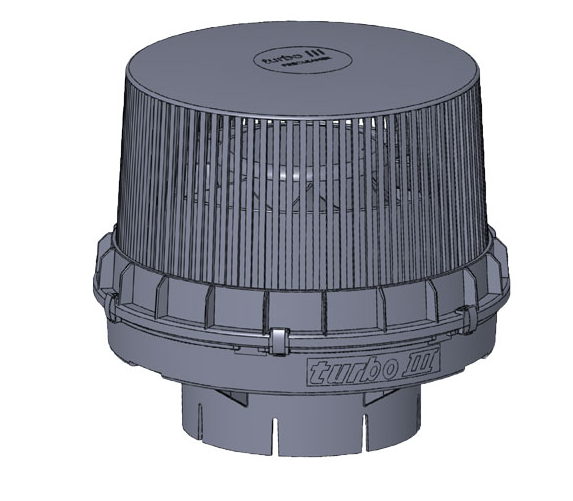

Model 390 Turbo III Precleaner

Offering the same superior protection against damaging micro abrasive dust as the turbo II is our latest generation precleaner, the turbo III. Made up of high strength glass-reinforced polymer, the turbo III Precleaner carries the same high efficiency, low restriction reputation of the turbo II only lighter and easier to install.

• 80% pre-separation efficiency* at 500 CFM and 5” H2O restriction, 14 m3/min and 12.4 mBar
• Durable, glass-filled nylon construction
*tested according to ISO 5011, J726 Standard

1. The Turbo Precleaners have specially designed blades that cause the incoming air to spin.
2. As air spins, centrifugal force spins dust, dirt, insects, rain and snow from clean air.
3. Contaminants are blown out special discharge ports by a high-velocity air powered rotor.
4.  Only the purified air goes to the air filter

Airflow Range: CFM 350-700, m3/min 9.8-19.8
Inlet Size Base: 7” (178mm)
