Description
GMRESCG-48S

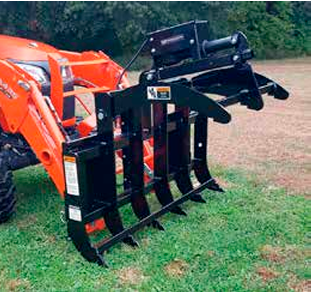

No auxiliary hydraulics to operate the clamp on a grapple? No problem with Worksaver’s Electric Sub-Compact Grapple. All you need is a connection to the battery. Engineered for Sub-Compact tractors (up to 32-hp) with a loader to handle debris & so much more. The ESCG-48S is opening up possibilities never before available to large and small property owners.
STANDARD FEATURES
• 12-volt linear actuator with 8-inch stroke operates the grapple clamp
• Includes wiring harness for direct connection to the tractors’ battery
• Pre-wired rocker switch controls the grapples’ linear actuator
• Designed for sub-compact tractors up to 32 horsepower
Electric Sub-Compact Grapple Rake Specifications
Overall Width (in/mm) 49 / 1245
Mounctret Type Skid Steer
Overall Height Closed (in/mm) 41.5 / 1054
Grapple Opening (in/mm) 31 / 787
Upper Grapple Width (in/mm) 28.25 / 718
Lower Grapple Width (in/mm) 49 / 1245
Tine Spacing (in/mm) 9.25 / 235
Number of Tine/Grapple (lower/upper) 6 / 3
Type of Linear Actuator 12-volt, IP65 Rated
Actuator Stroke (in/mm) 8 / 203
Weight (lbs/kg) 247 / 112
