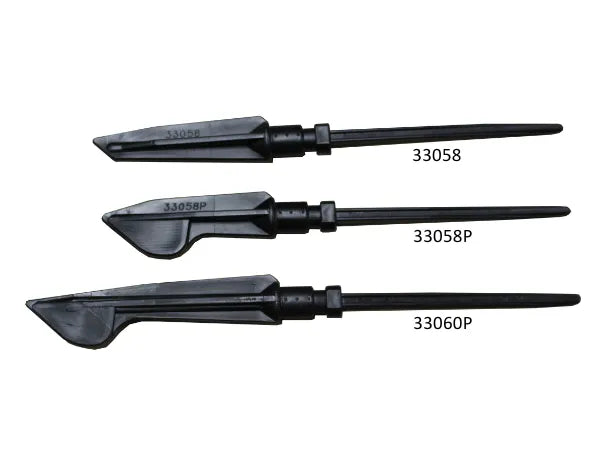

FLEX33060P.1 NYLON HEAVY DUTY FINGER 1.01 X 7.75 INCH WITH PAD, NO TAIL

• Heavy Duty nylon finger with pad and no tail, with a forward lifting point 7.75 in. (197 mm) long and a touchdown pad on the underside
• Works well in rocky, dry or sandy loam soil
• Not recommended for use in wet, heavy, gumbo soil conditions
• Sold individually

Technical data

• Diameter x length: 1.01 in. (26 mm) x 7.75 in. (197 mm)
• Material: nylon
• Touchdown pad: yes, on the underside
• Tail: none (no tail)
• Fits the 1.01 in. (26 mm) receptor on Heavy Duty crop lifters 70050, 70052 and 70050-MD-2, and on FlexxiFloat 100 lifters

Installation

• Seat the finger fully into the lifter receptor, matching the flat section on the finger body to the flat section on the receptor, like a key into a lock; tap with a rubber mallet or hammer until it has bottomed completely into the receptor
• Once fully seated, rotate the finger 90 degrees with pliers or a wrench to lock it into place; if it is hard to turn, it may not be fully seated
• Loosen the receptor lock nut from the carriage bolt to adjust the finger angle; the adjustable receptor lets the operator fine-tune the forward lifting point for specific conditions
• Set the finger angle to a maximum of 25 degrees from the ground, with the finger tip about 1/2 in. (13 mm) to 3/4 in. (19 mm) above the ground, and set all lifters to the same angle so they work in unison
• Installation guide: Heavy Duty Crop Lifters — Installation & Adjustment Instructions (Flexxifinger, PDF)

Tips & tricks

• Touchdown pad suits rocky, dry or sandy loam soil
• Not recommended for wet, heavy, gumbo soil conditions
• Leaves approximately 2 in. to 4 in. (50 mm to 102 mm) of stubble
