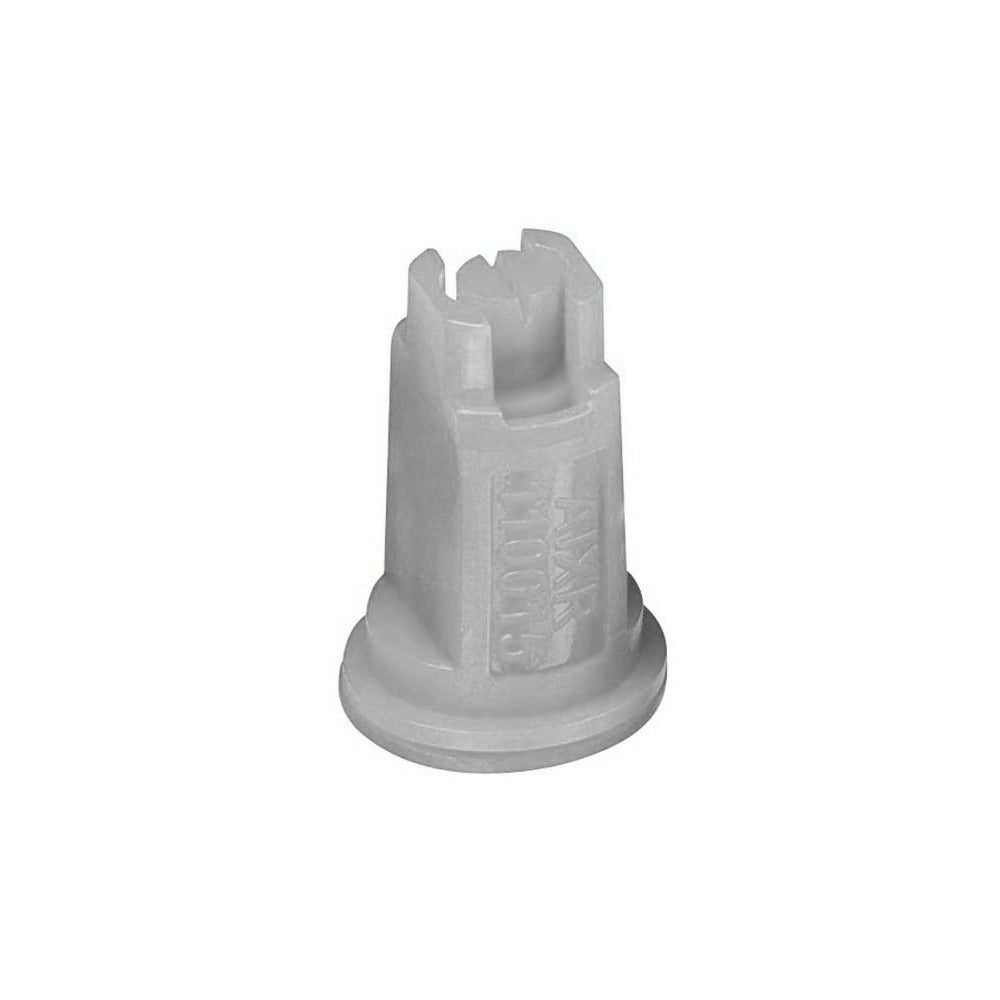

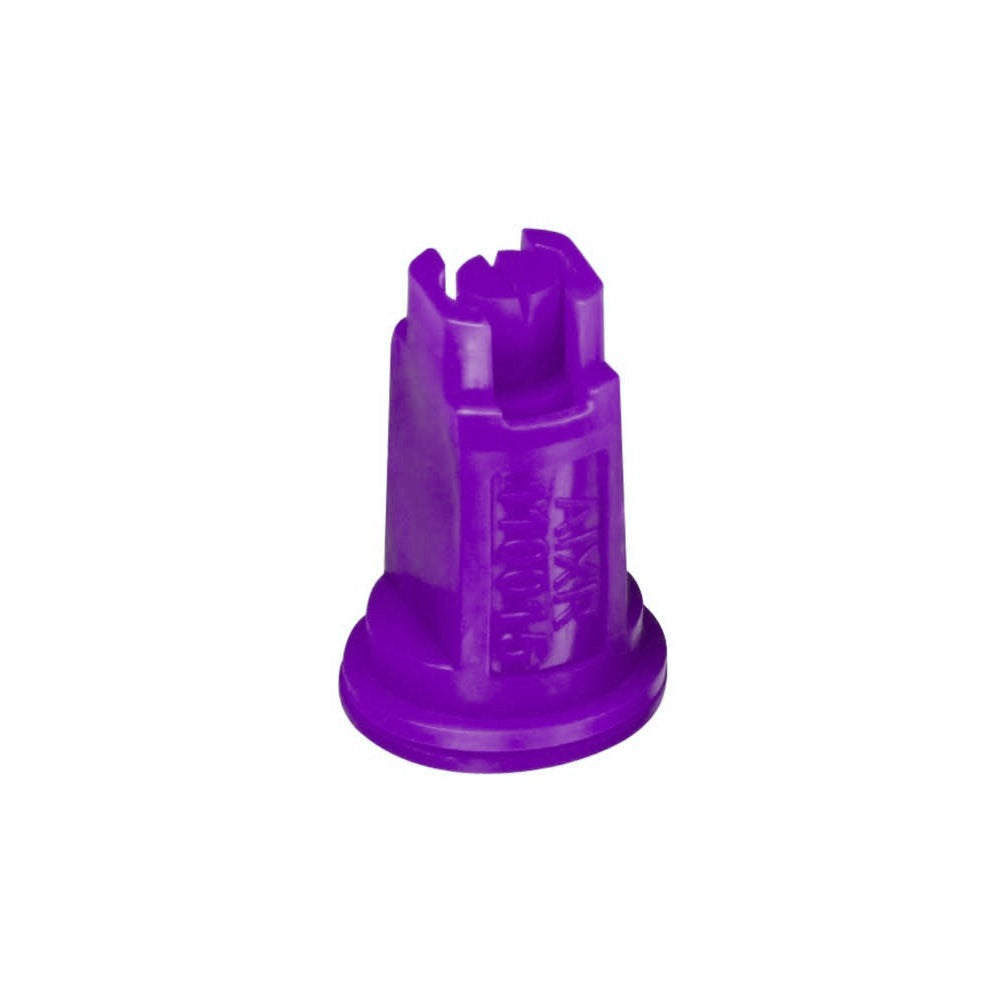

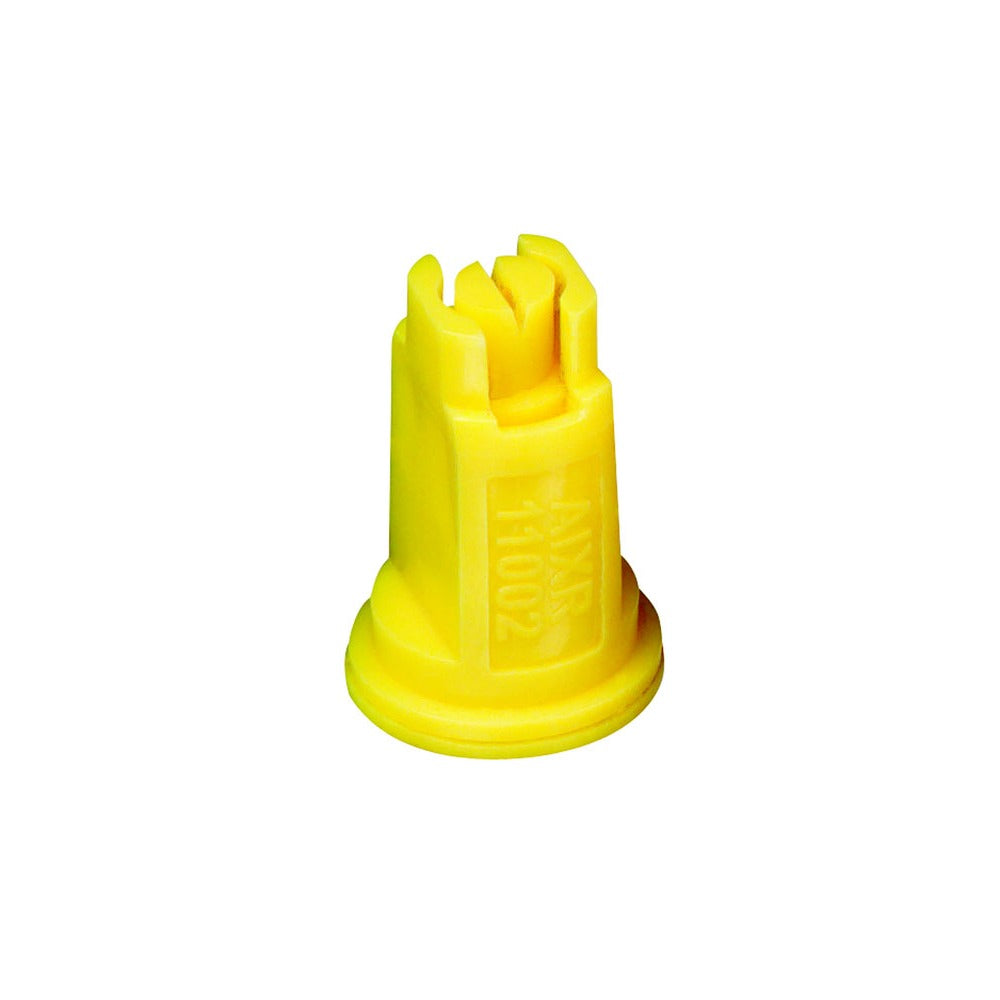

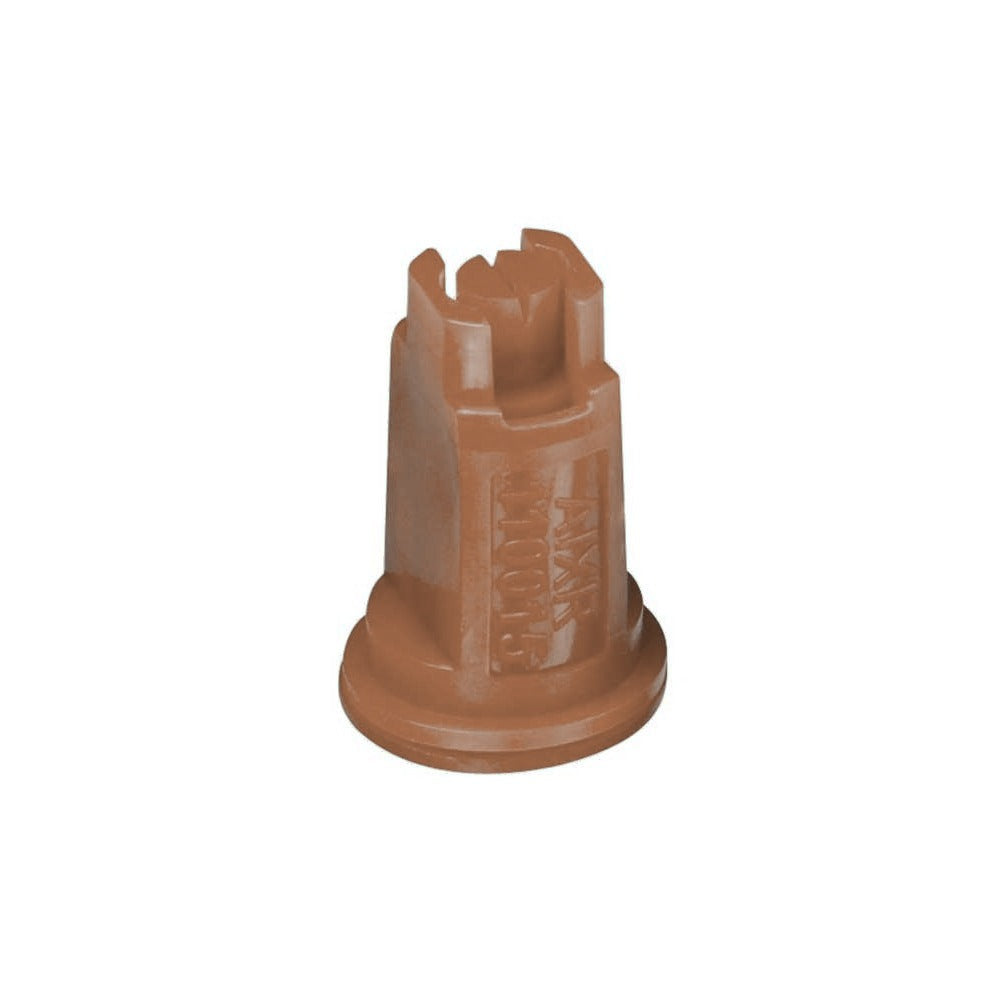

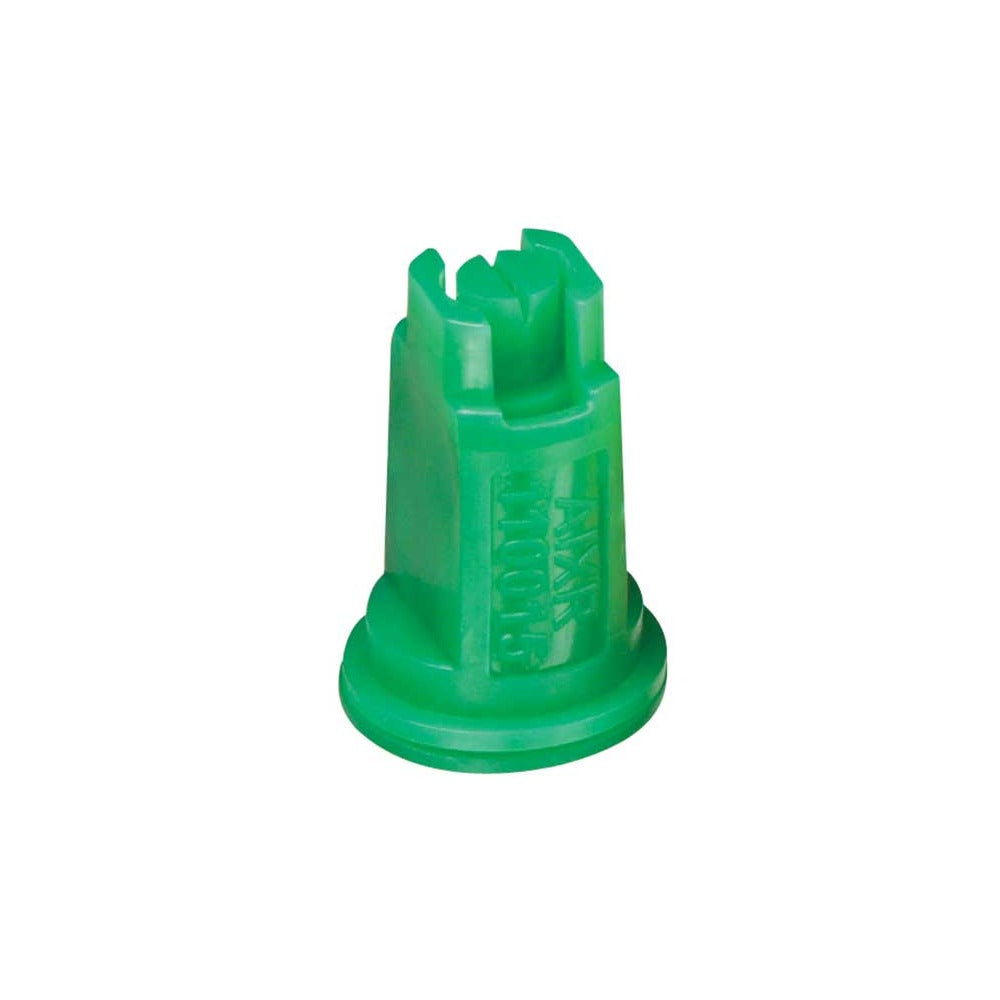

AIXR TeeJet Air Induction Extended Range Flat Spray Tip

• Air Induction Extended Range flat spray tip — the best balance between spray coverage and drift control
• Produces large air-filled droplets through a Venturi air aspirator — up to 90% drift reduction (VP)
• Wide operating pressure range: 15–90 PSI (optimum 45–60 PSI)
• Compact design with removable pre-orifice for easy cleaning
• UHMWPE polymer body — high chemical resistance and longer wear life
• VisiFlo colour-coded polymer body for quick size identification
• Automatic spray alignment with Quick TeeJet cap and gasket
• Fits all standard TeeJet nozzle bodies and caps
• Droplet size: Medium to Ultra Coarse (ISO 25358)

Complete the job: pair it with a 50-mesh tip screen (8079-PP-50) (use 100-mesh for 01 and 015 sizes) and a cap gasket (CP19438-EPR) so the tip seals and sprays right.

Technical Information

• 110° tapered edge flat spray with air induction technology for better drift management
• Recommended pressure range: 15–90 PSI
• Droplet size classification: Medium through Ultra Coarse (M / C / VC / XC / UC)
• Produces large air-filled droplets through a Venturi air aspirator
• Materials: unique UHMWPE polymer on AIXR-VP for improved wear life and better acid resistance; AIXR-VK has polypropylene body with ceramic pre- and exit orifice for improved wear life and excellent acid resistance
• Available in nine VisiFlo polymer (VP) and seven ceramic (VK) capacities
• Removable pre-orifice
• Optimum spray height: 20" at 20" nozzle spacing
• Automatic spray alignment with Quick TeeJet cap and gasket 114441A-*-CELR (sizes 015–06)
• Typical applications: herbicide, fungicide, insecticide, soil-applied — contact and systemic, broadcast
• Drift control: Very Good

Tip Chart — Application Rates

View full-size tip chart
