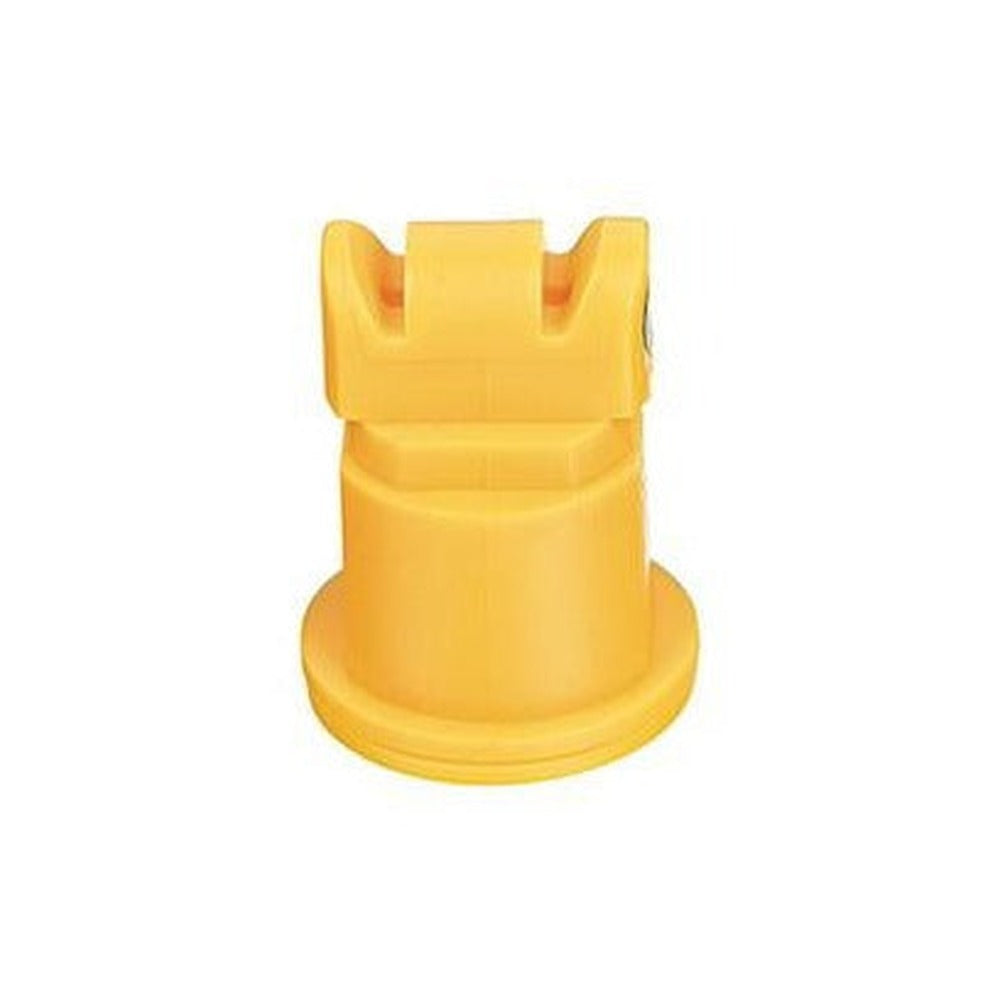

AITTJ60 AI Turbo TwinJet Spray Tip

• Dual tapered edge spray tip with air-induction technology — superior crop coverage and penetration with excellent drift control
• Dual symmetric 110° flat fan patterns with 60° angle between leading and trailing sprays for increased canopy penetration and leaf coverage
• Greater number of droplets for superior coverage vs. single-pattern tips
• Venturi air aspirator produces drift-resistant droplets
• Automatic spray alignment with Quick TeeJet cap and gasket 114443A-*-CELR (02 to 06) or 114502A-*-CELR (08 to 15)
• Polymer VisiFlo color-coded body — chemical resistant and easy to identify by capacity
• PWM approved

Technical specifications:

• Spray angle: Dual 110° patterns, 60° between leading and trailing
• Recommended pressure range: 20–90 PSI
• Optimum spray height (20″ spacing): 20″
• Droplet size classification: M (Medium) through UC (Ultra Coarse)
• Material: VP — Polymer with VisiFlo color-coding

Typical applications:

• Herbicide (soil-applied): Very Good | Contact: Very Good | Systemic: Excellent
• Fungicide — Contact: Good | Systemic: Excellent
• Insecticide — Contact: Good | Systemic: Excellent
• Drift control: Excellent

Application rates at 40 PSI (20″ spacing):

• 11002 (02 Yellow): 0.20 GPM — 11.9 GPA @ 5 MPH | 7.4 GPA @ 8 MPH | 5.9 GPA @ 10 MPH

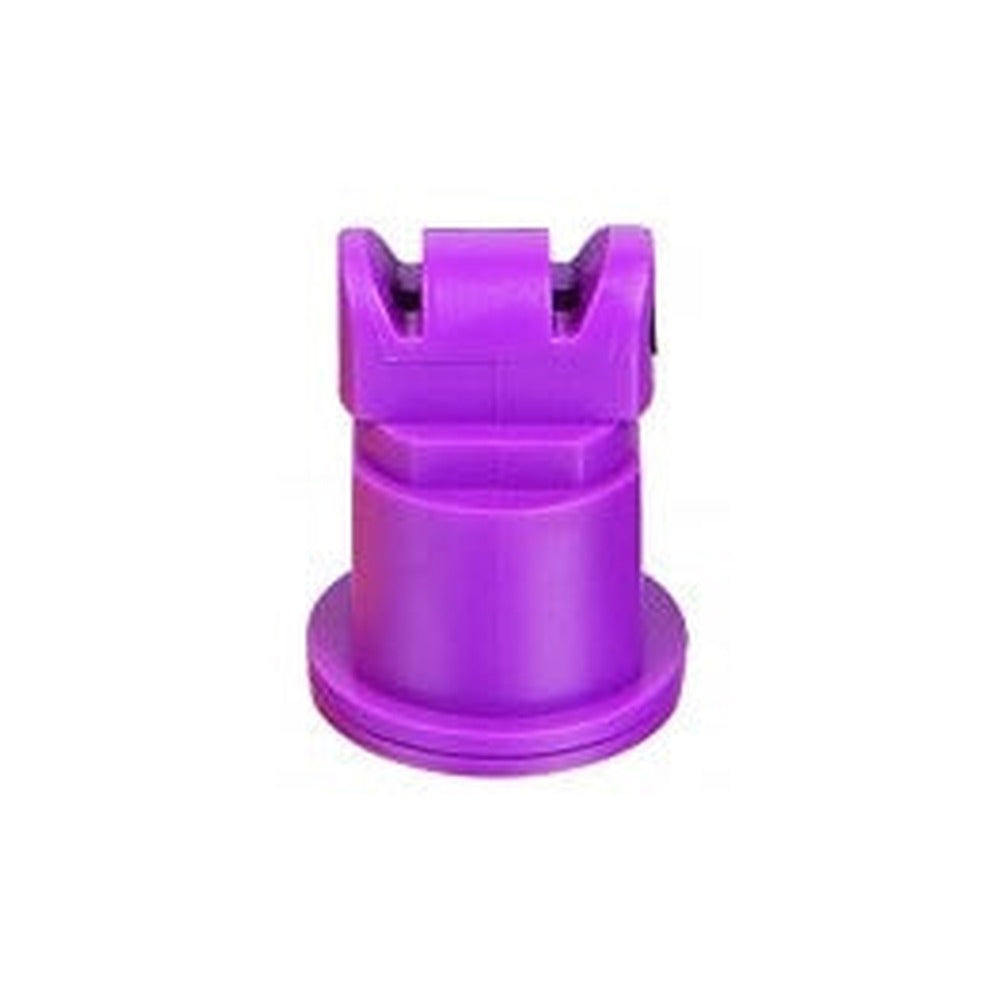

• 110025 (025 Purple): 0.25 GPM — 14.9 GPA @ 5 MPH | 9.3 GPA @ 8 MPH | 7.4 GPA @ 10 MPH

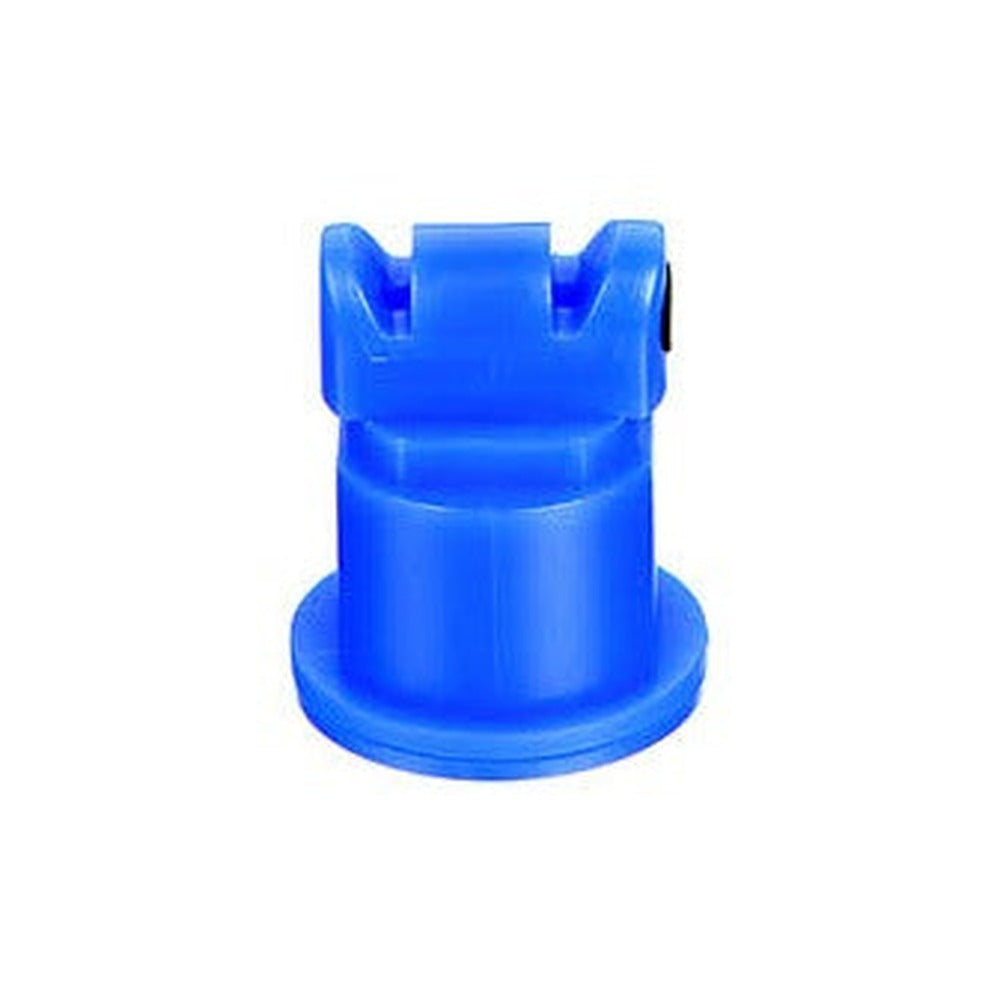

• 11003 (03 Blue): 0.30 GPM — 17.8 GPA @ 5 MPH | 11.1 GPA @ 8 MPH | 8.9 GPA @ 10 MPH

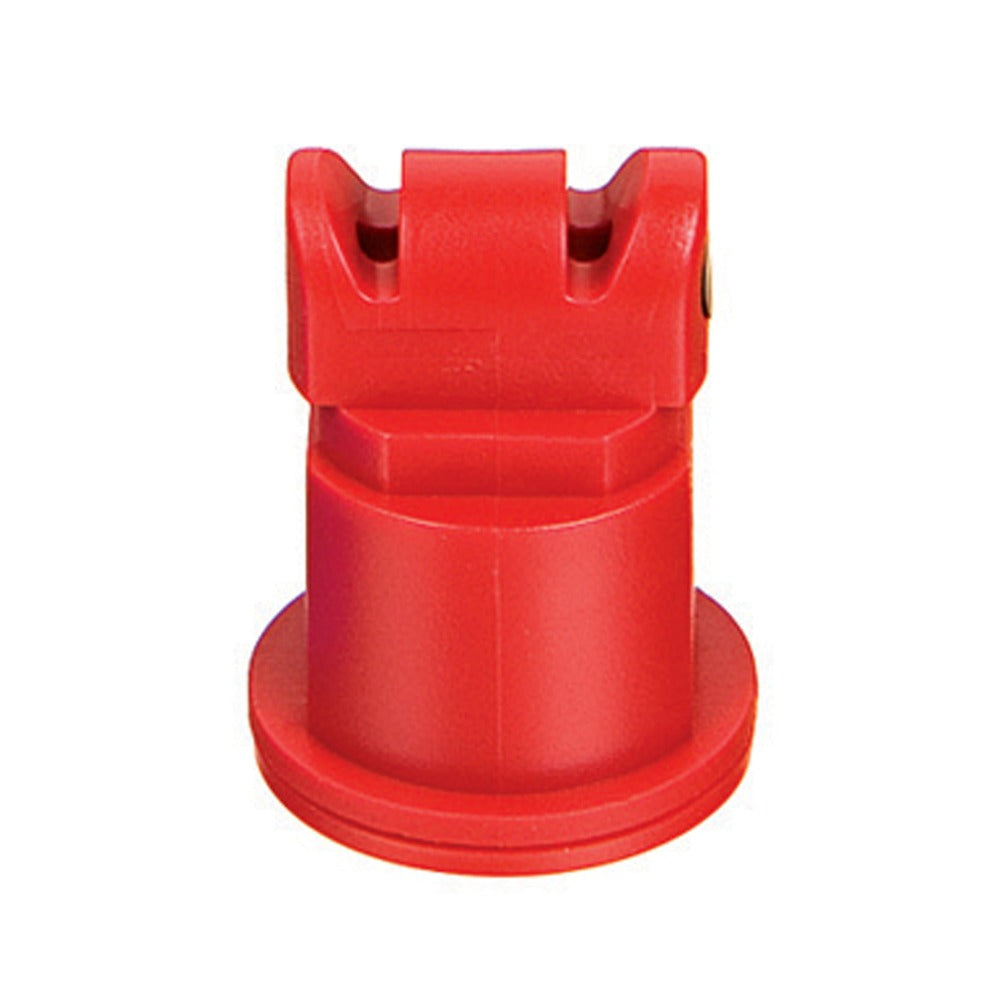

• 11004 (04 Red): 0.40 GPM — 24 GPA @ 5 MPH | 14.9 GPA @ 8 MPH | 11.9 GPA @ 10 MPH

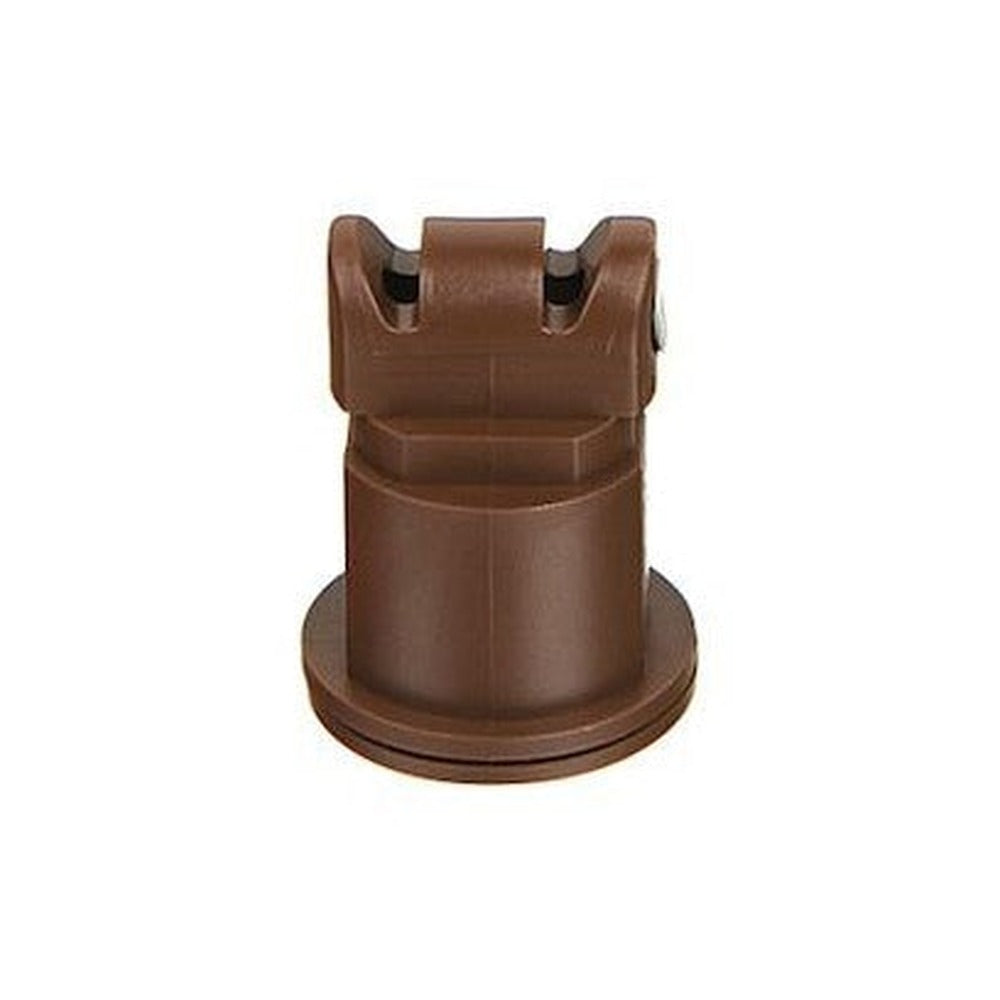

• 11005 (05 Brown): 0.50 GPM — 30 GPA @ 5 MPH | 18.6 GPA @ 8 MPH | 14.9 GPA @ 10 MPH

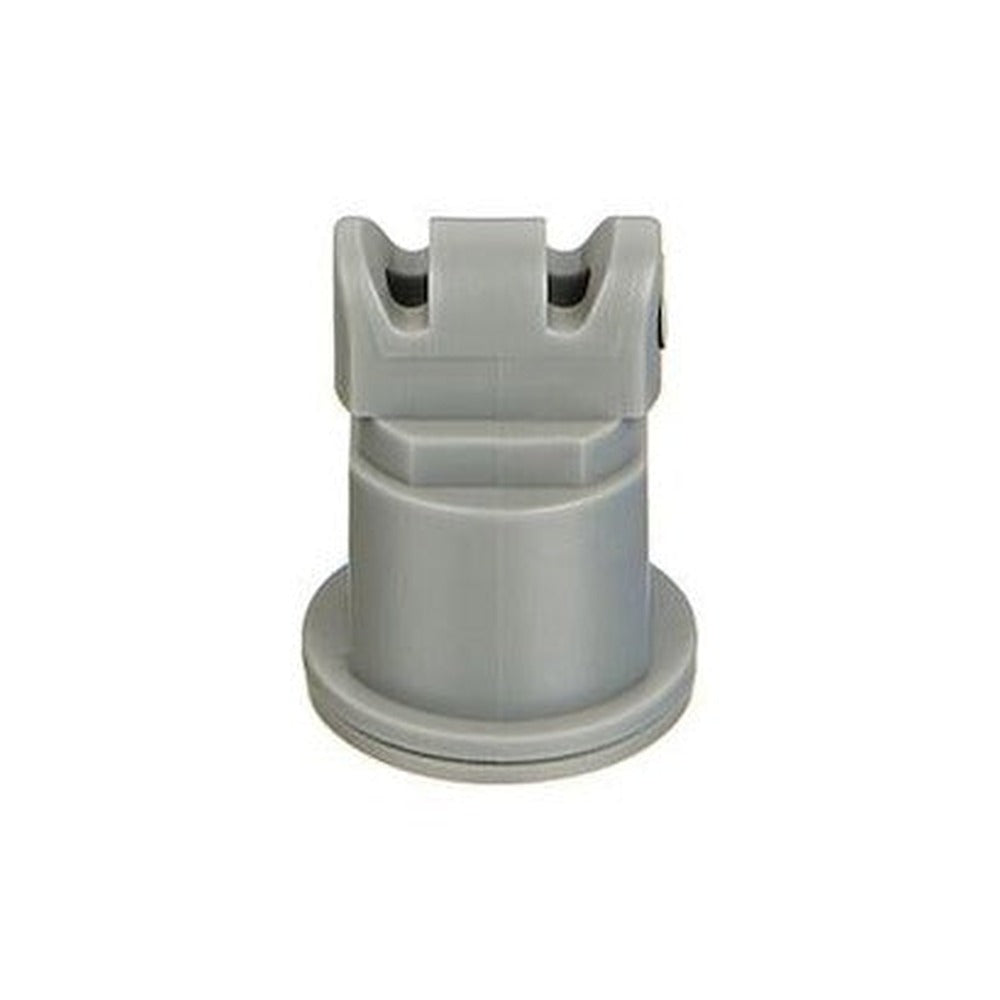

• 11006 (06 Gray): 0.60 GPM — 36 GPA @ 5 MPH | 22 GPA @ 8 MPH | 17.8 GPA @ 10 MPH

Technical Information

• Dual tapered edge spray tip with air-induction technology
• Dual symmetric 110° flat fan patterns with 60° angle between spray patterns; greater droplet numbers give superior crop coverage and penetration with excellent drift control
• Recommended pressure range: 20–90 PSI
• Droplet size classification: Medium through Ultra Coarse (M / C / VC / XC / UC)
• Materials: VisiFlo polymer (VP); available in nine VP capacities
• Optimum spray height: 20" at 20" nozzle spacing
• Automatic spray alignment with Quick TeeJet cap and gasket 114443A-*-CELR (sizes 02–06) or 114502A-*-CELR (sizes 08–15)
• Typical applications: herbicide, fungicide, insecticide, soil-applied — contact and systemic, broadcast
• Drift control: Excellent; PWM approved

Tip Chart — Application Rates

View full-size tip chart
