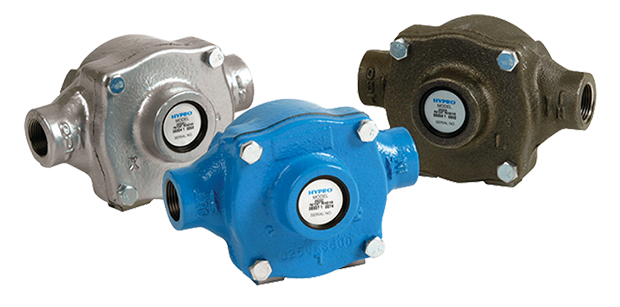

6500XL, PUMP ASSY ROLLER

Description

The 6500 series, 6 roller, pump achieves up to 21.8 gpm (82.5 lpm) and 300 psi (20.7 bar). Herbicide Users: Cast Iron pumps lasted to 140 hours before failure, Ni-Resist pumps lasted to 332 hours before failure, and Silver Series XL pumps ran over 1000 hours and still met new pump specs!

Features

• Viton® seals offer the best overall chemical resistance
• Super Rollers (standard) provide premium wear and life with Poly and PTFE options available for superior chemical resistance
• Standard rotation is counter clockwise, clockwise rotation is available

Specifications

• Pump Type: Roller Pump
• Housing Material: Silvercast
• Seal Material: Viton
• Ports: 3/4" x 3/4" NPT
• Shaft: Solid
• Max GPM: 21.8
• Max LPM: 82.5
• Max PSI: 300
• Max BAR: 20.7
• Max RPM: 1200
• Shaft Output (US): 5/8"
• Shaft Output (Metric): 15.9mm

What's in the Box

• 6500XL Silver Series roller pump in the box; PTO adapter, torque arm kit and fittings sold separately.
