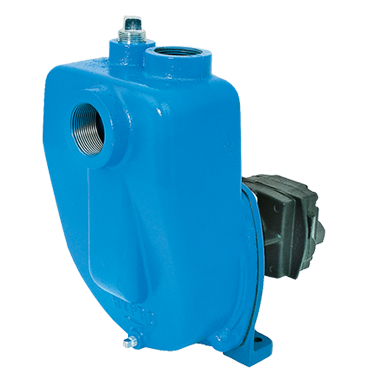

9303C-HM3C, PUMP ASSY

Description

The Hypro 9303C & 9303S Series hydraulic motor driven, cast iron and stainless steel centrifugal pump achieves a max of 147gpm and 145psi.

Features

• Available in cast iron and 316 stainless steel for extended pump life
• Hydraulic motor drive (for open center, closed center and load-sensing systems)
• 220 x 200 Universal Flange available (U)
• Max. fluid temperature: 140°F/60°C
• Impeller: Cast Iron models – Nylon; (GTX available) Stainless Steel models – Polypropylene
• Motor: internal gear gerotor
• Pump seals: Cast Iron models – Viton ® /ceramic standard; Life Guard silicon carbide (B) available; Stainless Steel models – Life Guard silicon carbide standard
• Hydraulic motor seal: double-lip Teflon ®
• Weight: 26 lbs./11.8 kg

Specifications

• Pump Type: Centrifugal
• Drive Type: Hydraulic
• Hydraulic Selection System: Open/Closed
• Housing Material: Cast Iron
• Seal Material: Viton/Ceramic
• Max Flow (GPM): 125
• Max Flow (LPM): 473
• Max PSI: 98
• Max BAR: 6.8
• Max Hydraulic Flow (GPM): 20
• Max Hydraulic Flow (LPM): 75.7
• Max Hydraulic Motor PSI: 3000 [206.8 BAR]
• Pump Ports: 1-1/2" NPT Inlet; 1-1/4" NPT Outlet
• Hydraulic Ports: 1/2" NPT Inlet; 3/4" NPT Outlet; SAE-4 Case Drain
• Weight: 28.1 lbs [12.8 kg]
• Mounting Bolts: 2X 3/8" OR M10

What's in the Box

• Hypro 9303C-HM3C hydraulic motor driven cast iron centrifugal pump assembly
