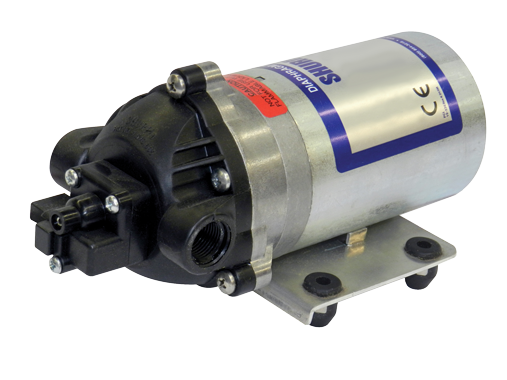

The 8000 Series diaphragm pump is Shurflo®'s most widely used industrial and agricultural pump. With spherically shaped valves and automatic demand switch, these pumps deliver consistent, dependable operation and priming; up to 1.8 GPM [6.8 l/min]. They are available in a variety of chemically resistant materials. They can be mounted in any position, and are designed for easy maintenance. They are available in a variety of voltages, from 12 VDC to 230 VAC.
Features
- Pressures up to 150 PSI [10.3 BAR]
- Self-Priming up to 8 Vertical Feet [2.4M]
- Chemically Resistant Materials
- Designed for Spraying and Fluid Transfer
- Can Run Dry without Damage
- Built-In Check Valve
- Supported for agriculture
Specifications
- Voltage: 12 VDC
- Control Pressure: 60 PSI
- Control Type: Bypass
- Open Flow GPM: 1.8 GPM
- Amps (Max): 7
- Ports: 3/8" NPT
- Housing Material: Polypropylene
- Valve Material: Viton
- Diaphragm Material: Santoprene
- CAM: 3
- Diaphragm Type: Solid
- Motor Finish: Zinc
- Motor Wiring: 16 AWG wires w/SW
- Wire Length: 12.5
- Agency Listing: None
What's in the Box
- 8000-543-220 12V bypass diaphragm pump in the box; fittings, strainers and wiring connectors sold separately.
