7700XL, PUMP ASSY

Description

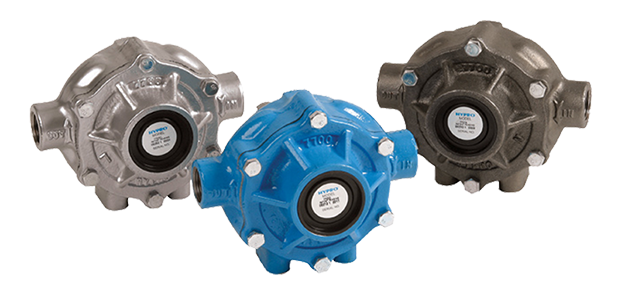

The 7700 series, 7 roller, pump achieves up to 22.1 gpm (83.7lpm) and 200 psi (13.8 bar). The series includes models 7700C, 7700N, and 7700XL.

Features

• Shaft rotation: Counter clockwise when looking at the shaft end(Clockwise available)
• Rollers: Super Rollers standard [Poly (T3) and Teflon® (T2)]
• Recommended PTO torque arm kit 3430-0540
• Rotor: Cast Iron, Ni-Resist or Silvercast

Specifications

• Pump Type: Roller Pump
• Housing Material: Silvercast
• Ports: 3/4" NPT
• Seal Material: Viton® standard
• Max Fluid Temperature: 140°F/60°C
• Weight: 14 lbs./6.4 kg
• Max GPM: 22.1
• Max LPM: 83.7
• Max PSI: 200
• Max BAR: 13.8
• Max RPM: 800
• Shaft Output (US): 15/16"
• Shaft Output (Metric): 23.8 mm
• Shaft: Solid

What's in the Box

• 7700XL Silver Series roller pump in the box; PTO adapter, torque arm kit 3430-0540 and fittings sold separately.
